Murus detail 13D

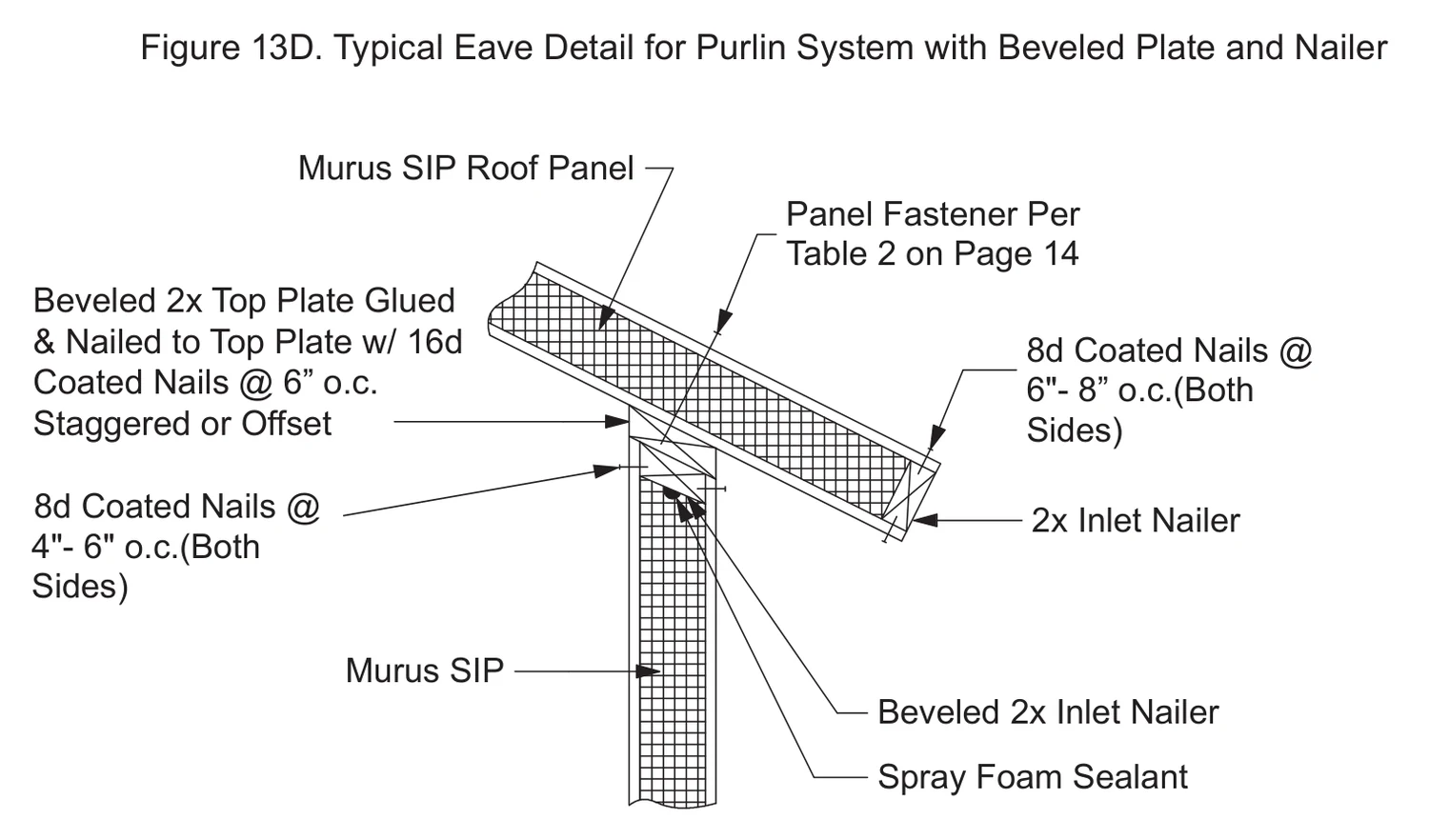

Typical Eave Detail for Purlin System with Beveled Plate and Nailer

Typical Eave Detail for Purlin System with Beveled Plate and Nailer — the manufacturer's designation for this condition. Drawing is not to scale; download the PDF for the full sheet.

Typical Eave Detail for Purlin System with Beveled Plate and Nailer construction detail drawing with callouts
Typical Eave Detail for Purlin System with Beveled Plate and Nailer13D · N.T.S.
Detail
13D
Name
Typical Eave Detail for Purlin System with Beveled Plate and Nailer
Group
Roof / Wall Connections
Scale
N.T.S.
Source
The Murus Company, Inc.

Download PDF

Free, no signup. Confirm conditions against your engineer's requirements and local code.
