Murus detail 13C

Typical Eave Detail for Purlin Roof System with 2X Blocking

Typical Eave Detail for Purlin Roof System with 2X Blocking — the manufacturer's designation for this condition. Drawing is not to scale; download the PDF for the full sheet.

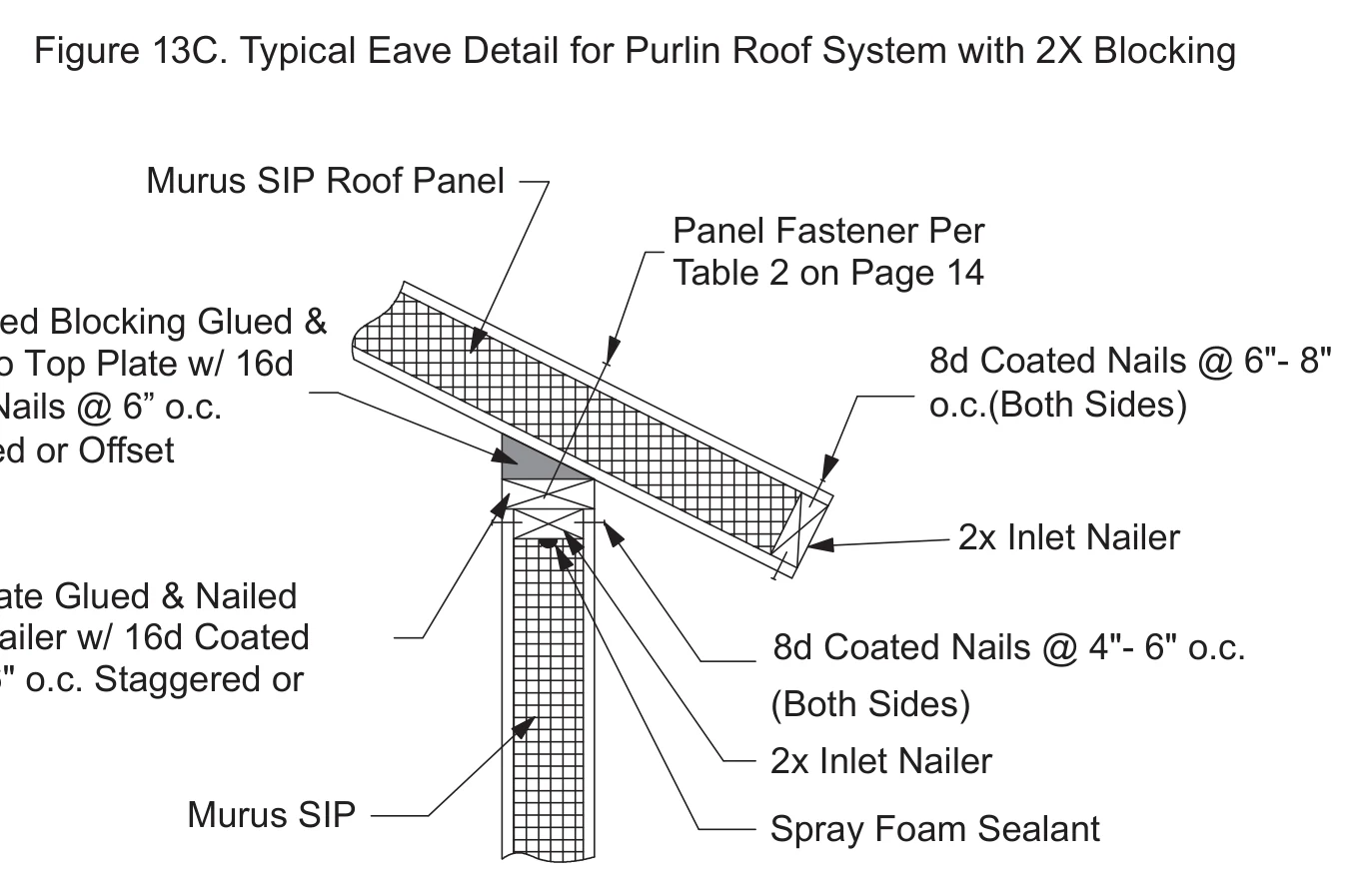

Typical Eave Detail for Purlin Roof System with 2X Blocking construction detail drawing with callouts

Typical Eave Detail for Purlin Roof System with 2X Blocking13C · N.T.S.

Detail: 13C
Name: Typical Eave Detail for Purlin Roof System with 2X Blocking
Group: Roof / Wall Connections
Scale: N.T.S.
Source: The Murus Company, Inc.

Free, no signup. Confirm conditions against your engineer's requirements and local code.
