Murus detail 12B

Stick Framed Roof with Continuous Header Detail

Stick Framed Roof with Continuous Header Detail — the manufacturer's designation for this condition. Drawing is not to scale; download the PDF for the full sheet.

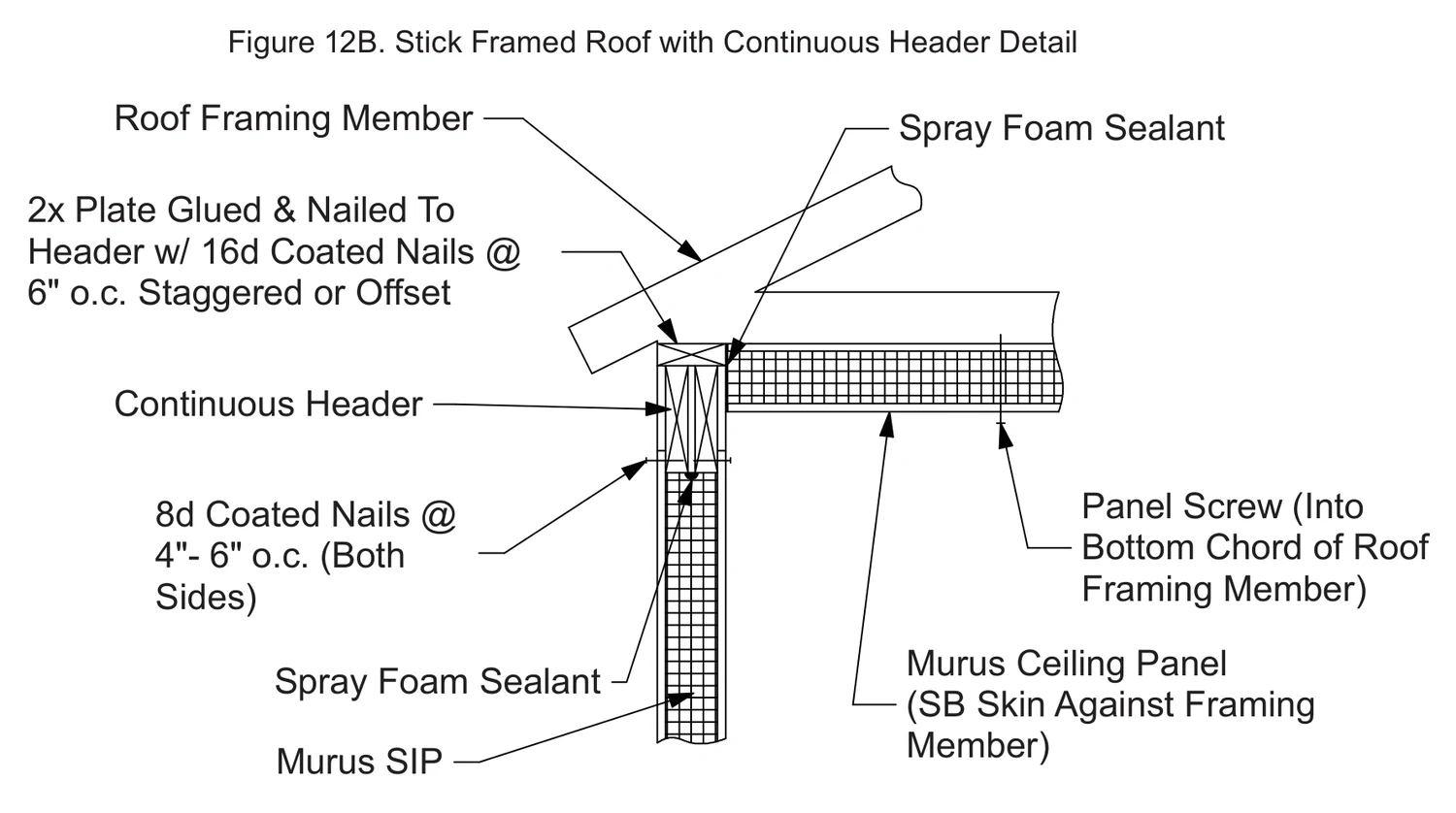

Stick Framed Roof with Continuous Header Detail construction detail drawing with callouts
Stick Framed Roof with Continuous Header Detail12B · N.T.S.
Detail
12B
Name
Stick Framed Roof with Continuous Header Detail
Group
Roof / Wall Connections
Scale
N.T.S.
Source
The Murus Company, Inc.

Download PDF

Free, no signup. Confirm conditions against your engineer's requirements and local code.

Roof / Wall Connections

Stick Framed Roof12APurlin Roof System13ATypical Detail with Purlin Roof System13BTypical Eave Detail for Purlin Roof System with 2X Blocking13CTypical Eave Detail for Purlin System with Beveled Plate and Nailer13DAll 55 Murus details→
