Murus detail 13B

Typical Detail with Purlin Roof System

Typical Detail with Purlin Roof System — the manufacturer's designation for this condition. Drawing is not to scale; download the PDF for the full sheet.

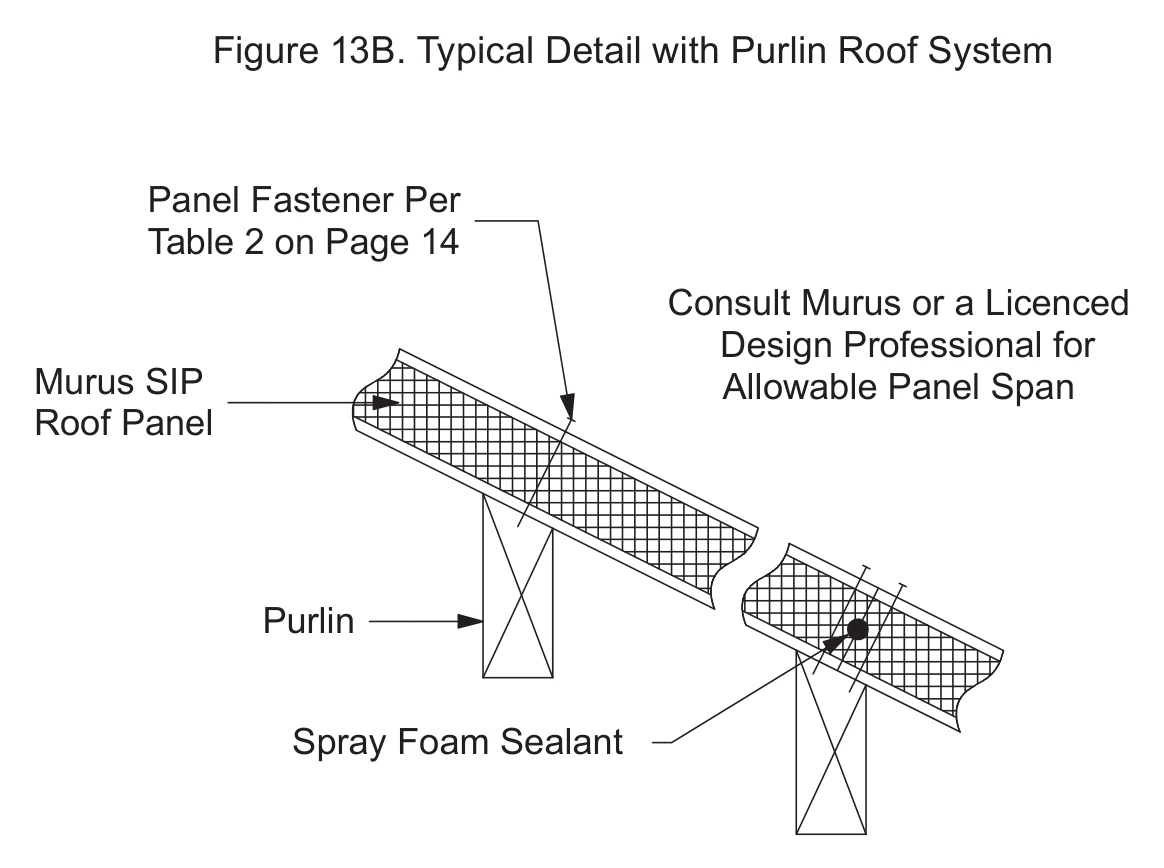

Typical Detail with Purlin Roof System construction detail drawing with callouts
Typical Detail with Purlin Roof System13B · N.T.S.
Detail
13B
Name
Typical Detail with Purlin Roof System
Group
Roof / Wall Connections
Scale
N.T.S.
Source
The Murus Company, Inc.

Download PDF

Free, no signup. Confirm conditions against your engineer's requirements and local code.
