Murus detail 12A

Stick Framed Roof

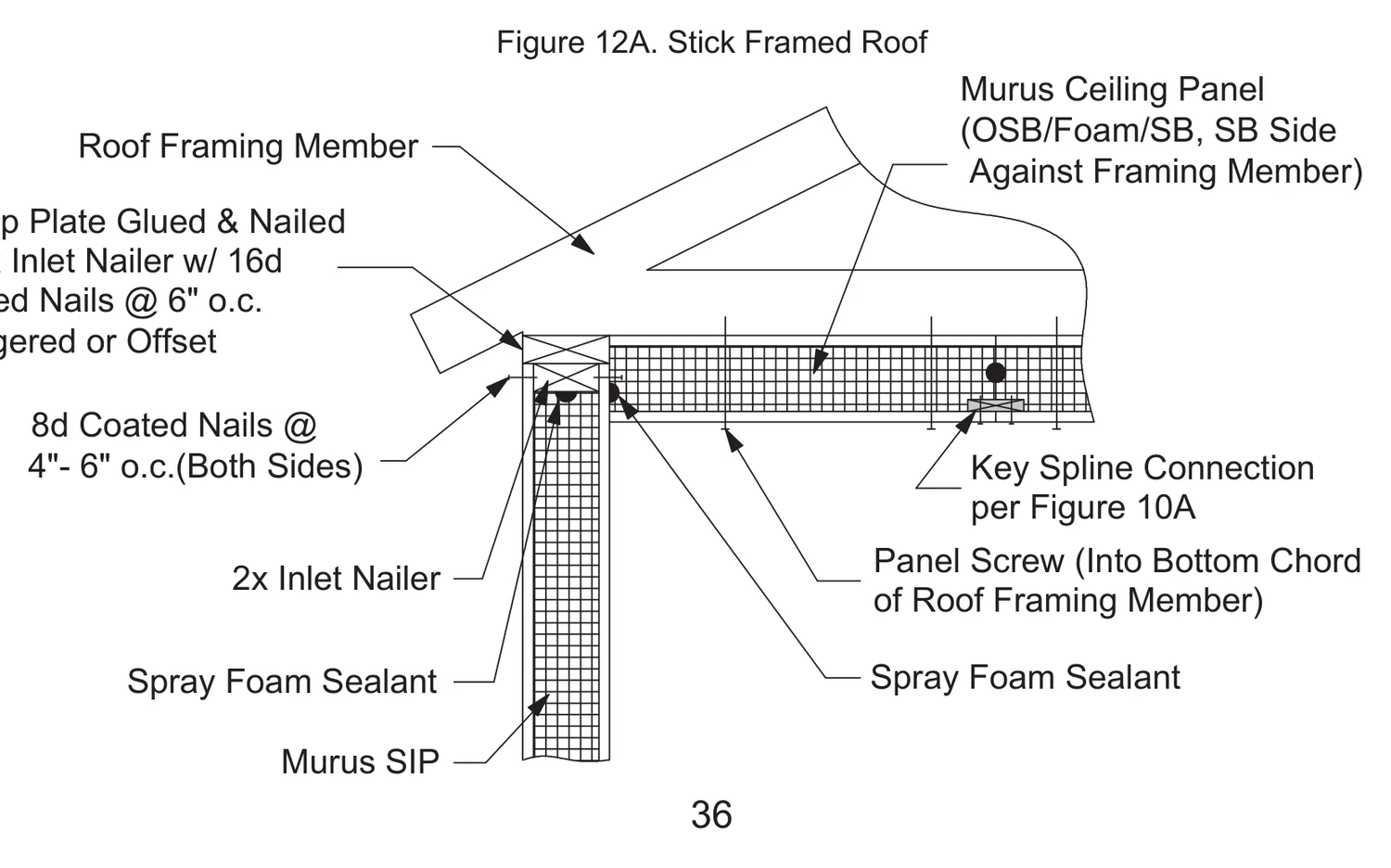

Stick Framed Roof — the manufacturer's designation for this condition. Drawing is not to scale; download the PDF for the full sheet.

Stick Framed Roof construction detail drawing with callouts
Stick Framed Roof12A · N.T.S.
Detail
12A
Name
Stick Framed Roof
Group
Roof / Wall Connections
Scale
N.T.S.
Source
The Murus Company, Inc.

Download PDF

Free, no signup. Confirm conditions against your engineer's requirements and local code.

Roof / Wall Connections
