EPS detail RB2

Roof Panel w/ Lumber / Ridge Beam

Roof Panel w/ Lumber / Ridge Beam — the manufacturer's designation for this condition. Drawing is not to scale; download the PDF for the full sheet.

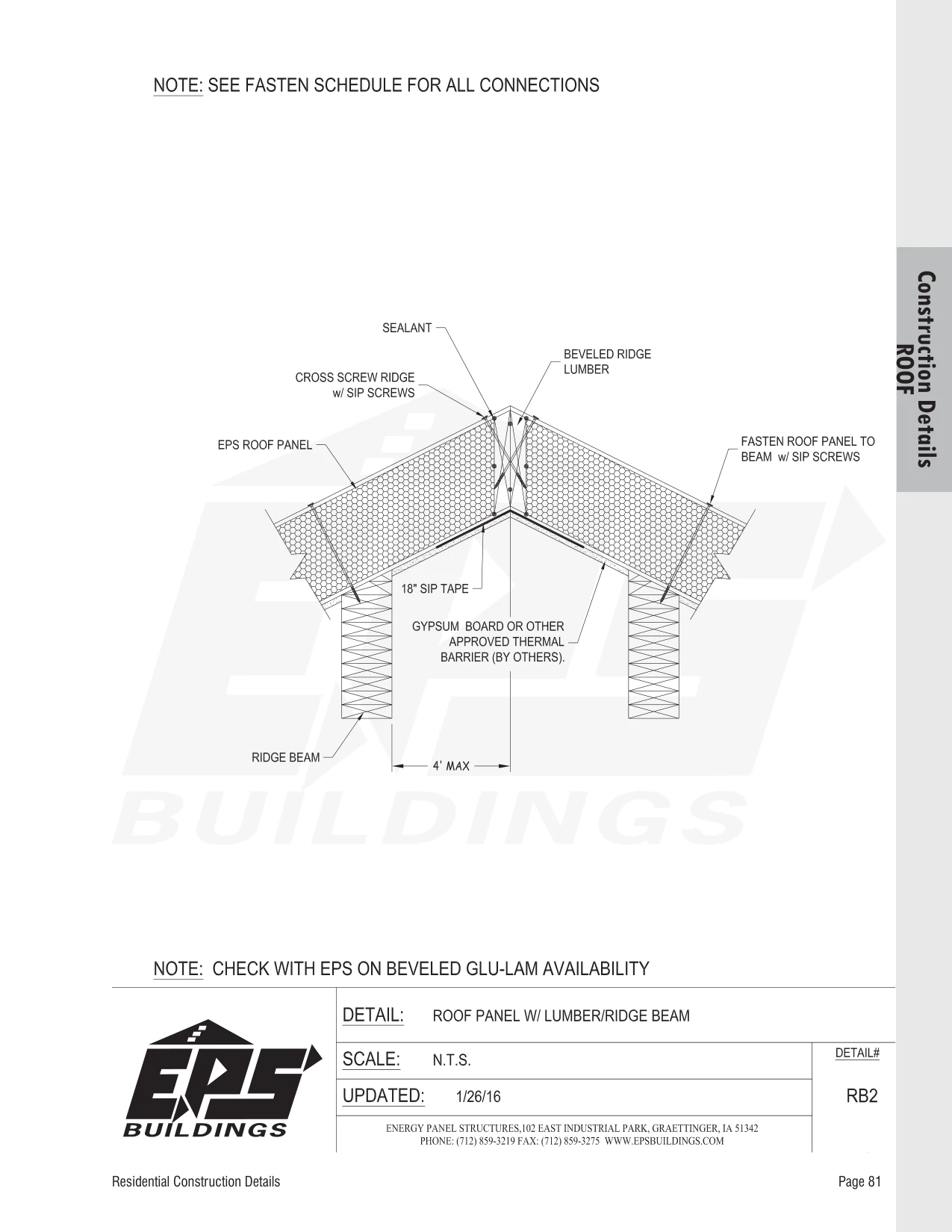

Roof Panel w/ Lumber / Ridge Beam construction detail drawing with callouts

Roof Panel w/ Lumber / Ridge BeamRB2 · N.T.S.

Detail: RB2
Name: Roof Panel w/ Lumber / Ridge Beam
Group: Ridge & Beam
Scale: N.T.S.
Source: Energy Panel Structures, Inc.

Free, no signup. Confirm conditions against your engineer's requirements and local code.
