EPS detail RB0

Roof Panel / Ridge Beam / Foam Cap

Roof Panel / Ridge Beam / Foam Cap — the manufacturer's designation for this condition. Drawing is not to scale; download the PDF for the full sheet.

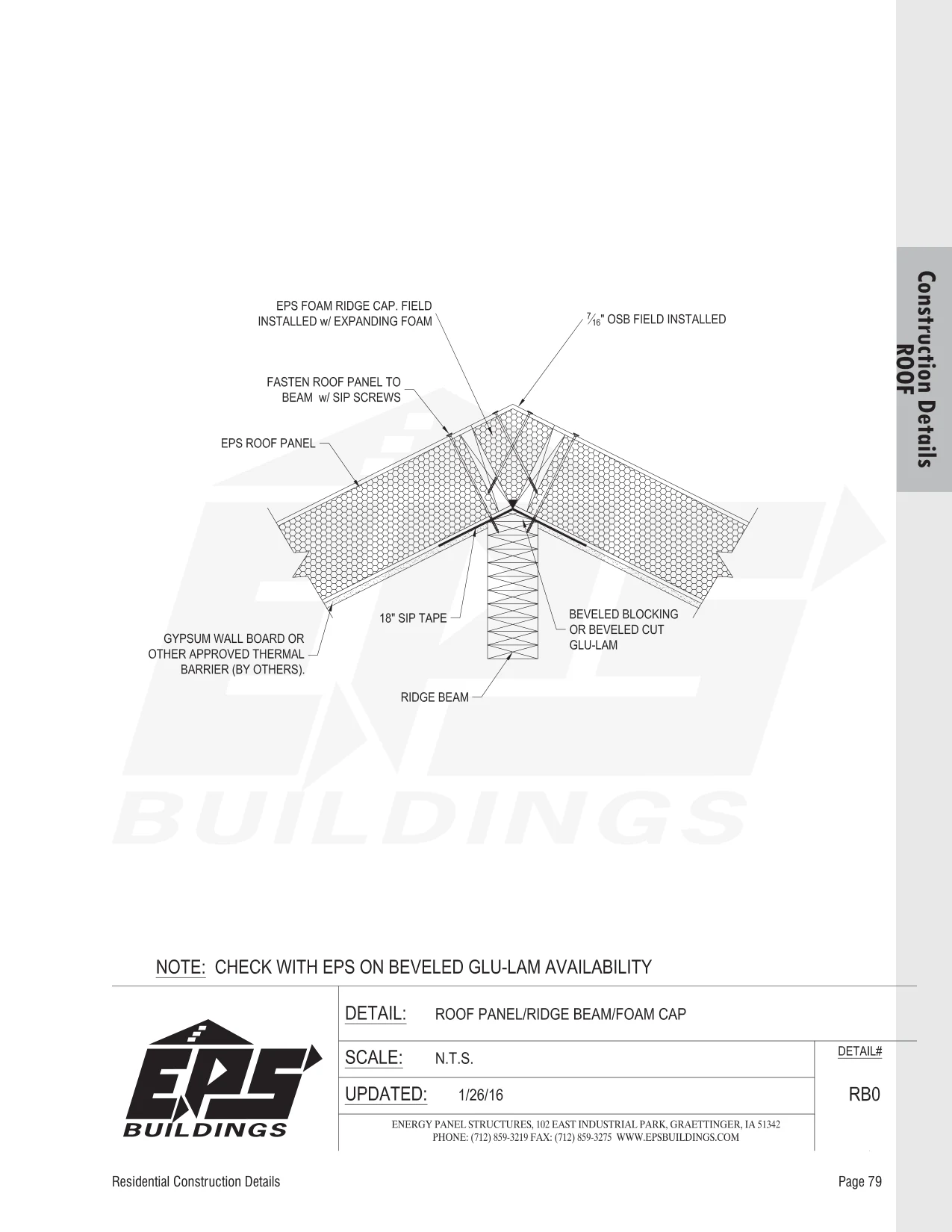

Roof Panel / Ridge Beam / Foam Cap construction detail drawing with callouts
Roof Panel / Ridge Beam / Foam CapRB0 · N.T.S.
Detail
RB0
Name
Roof Panel / Ridge Beam / Foam Cap
Group
Ridge & Beam
Scale
N.T.S.
Source
Energy Panel Structures, Inc.

Download PDF

Free, no signup. Confirm conditions against your engineer's requirements and local code.
