EPS detail RB1

Ridge Beam Roof Connection

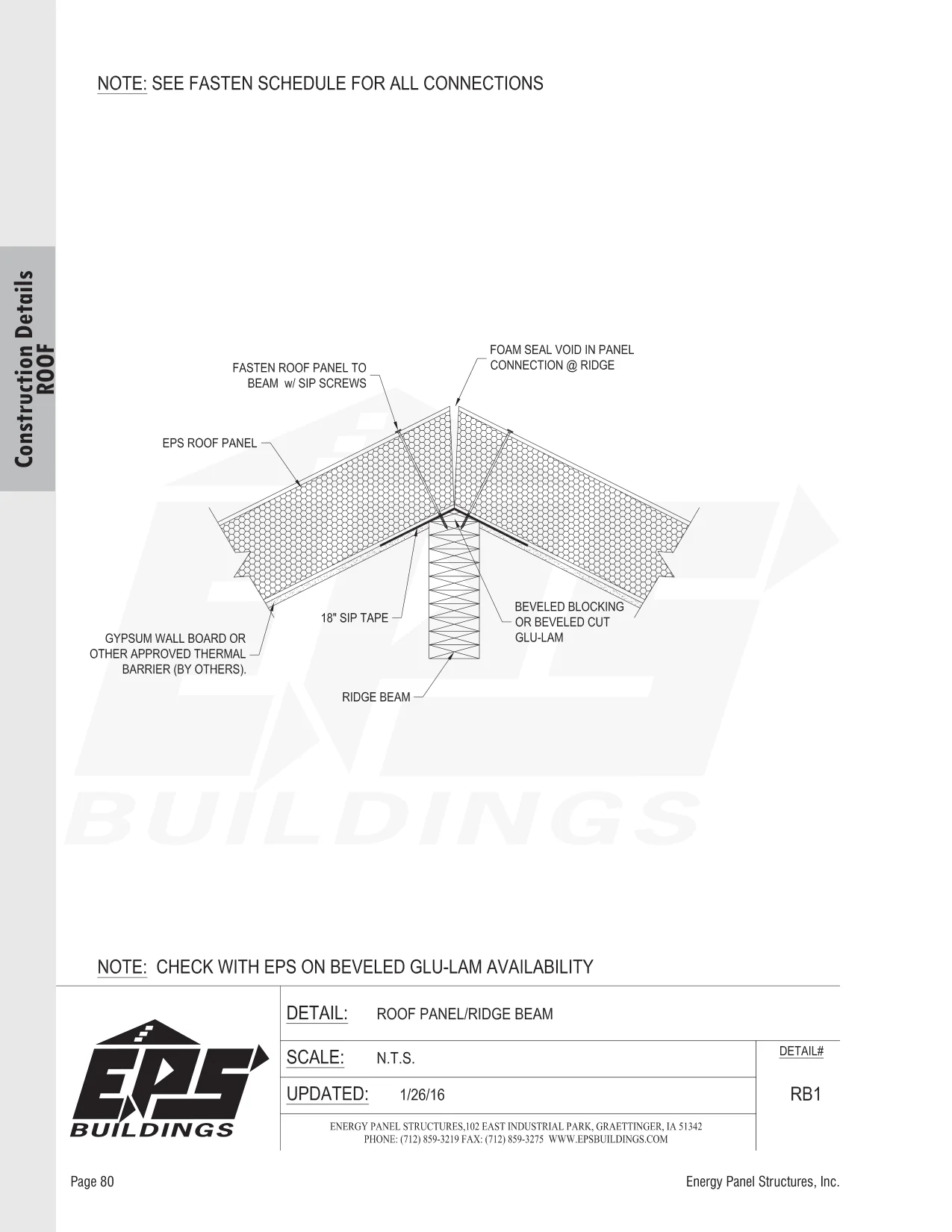

Roof Panel / Ridge Beam — the manufacturer's designation for this condition. Drawing is not to scale; download the PDF for the full sheet.

Roof Panel / Ridge Beam construction detail drawing with callouts
Roof Panel / Ridge BeamRB1 · N.T.S.
Detail
RB1
Name
Roof Panel / Ridge Beam
Group
Ridge & Beam
Scale
N.T.S.
Source
Energy Panel Structures, Inc.

Download PDF

Free, no signup. Confirm conditions against your engineer's requirements and local code.
