EPS detail RB5

Midspan Beam Roof Connection

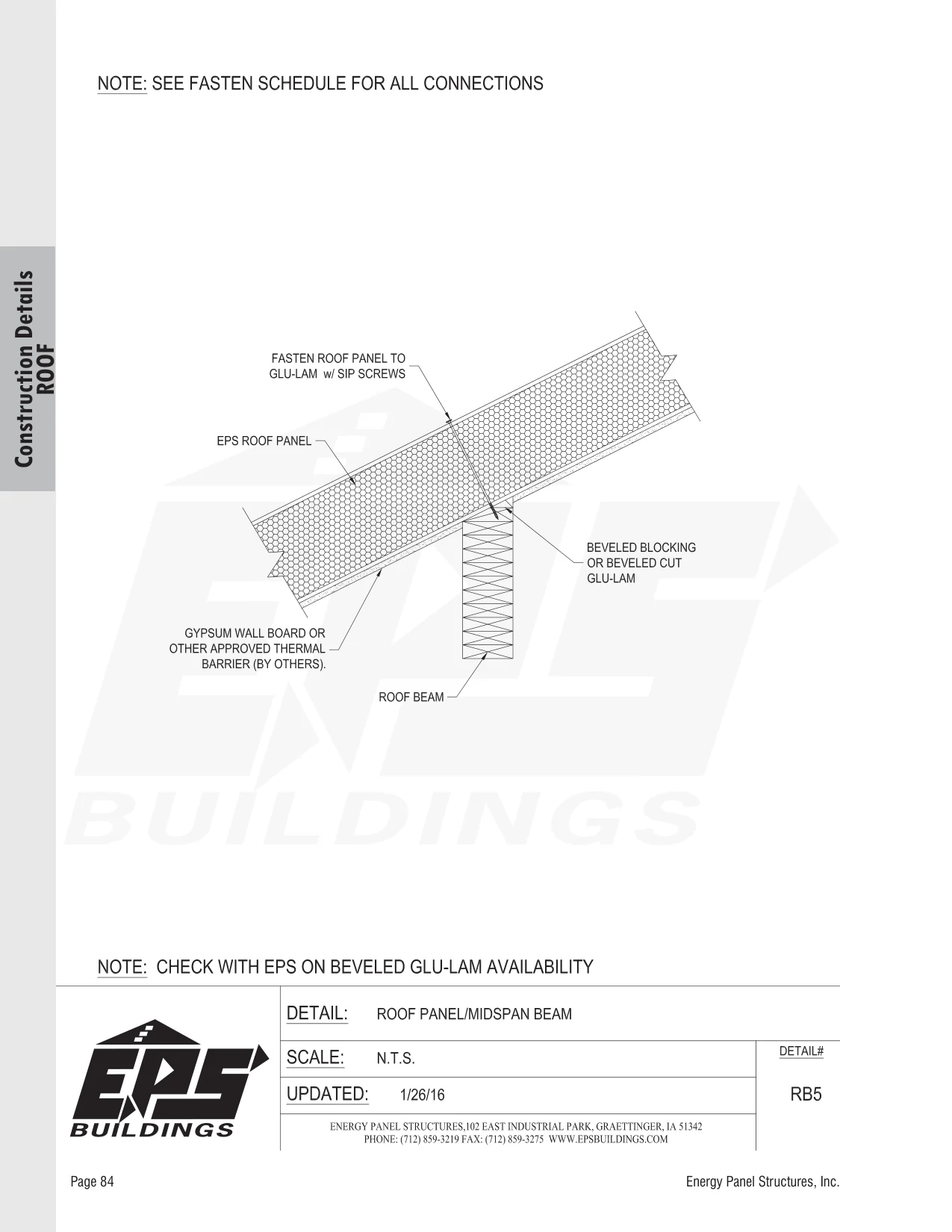

Roof Panel / Midspan Beam — the manufacturer's designation for this condition. Drawing is not to scale; download the PDF for the full sheet.

Roof Panel / Midspan Beam construction detail drawing with callouts
Roof Panel / Midspan BeamRB5 · N.T.S.
Detail
RB5
Name
Roof Panel / Midspan Beam
Group
Ridge & Beam
Scale
N.T.S.
Source
Energy Panel Structures, Inc.

Download PDF

Free, no signup. Confirm conditions against your engineer's requirements and local code.
