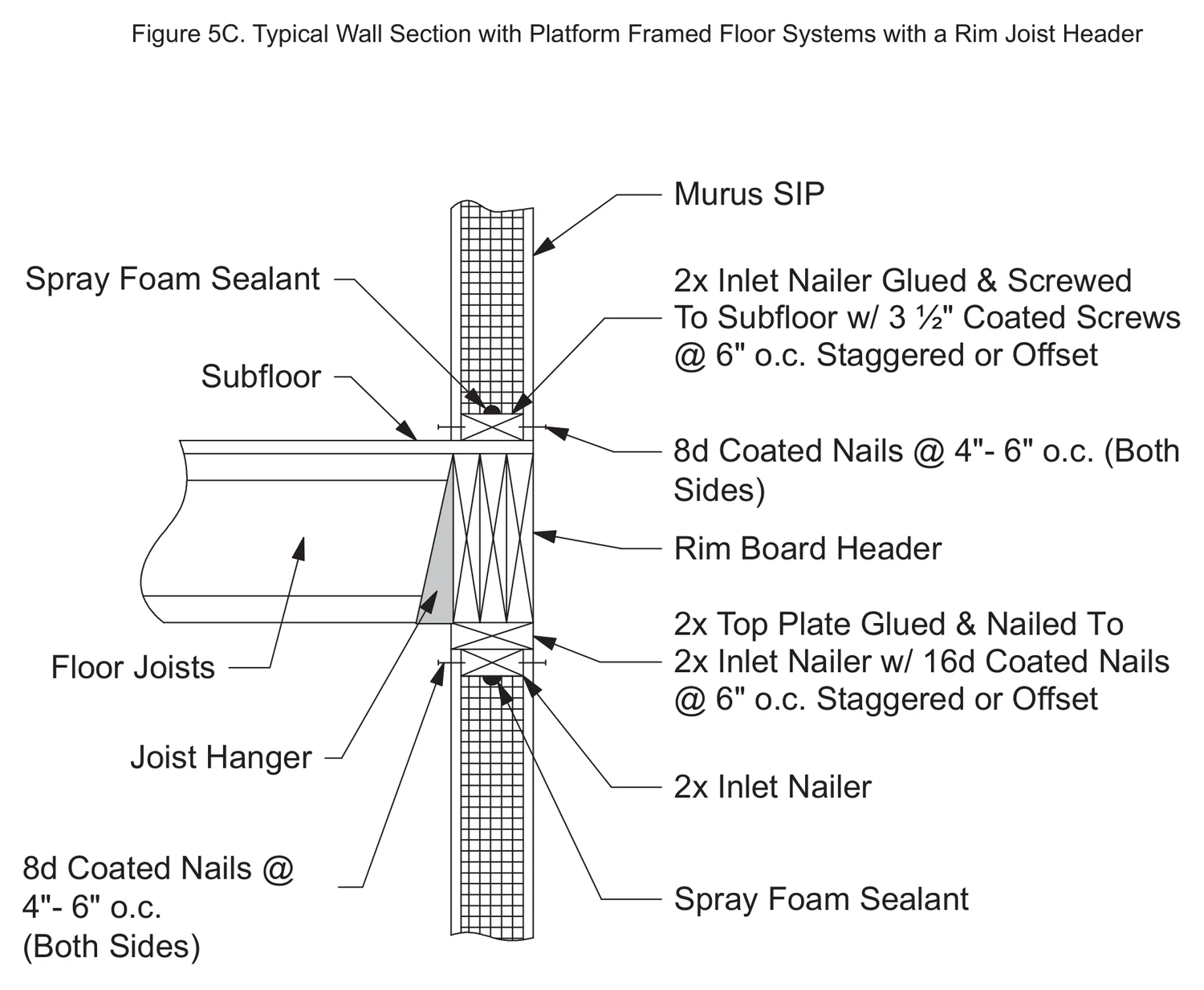

Typical Wall Section with Platform Framed Floor Systems with a Rim Joist Header5C · N.T.S.
- Detail
5C- Name
- Typical Wall Section with Platform Framed Floor Systems with a Rim Joist Header
- Group
- Floors & Foundations
- Scale
- N.T.S.
- Source
- The Murus Company, Inc.
