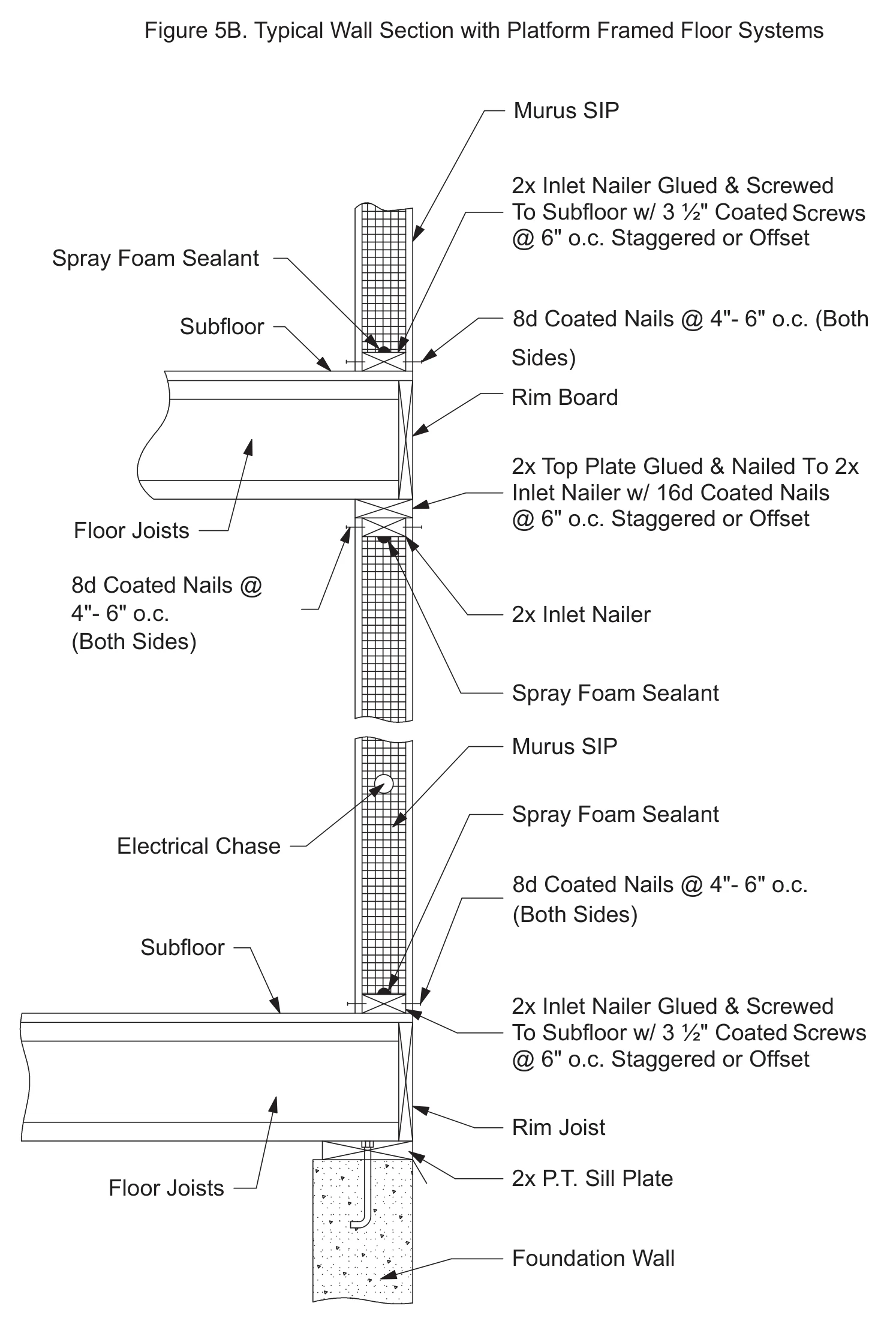

Typical Wall Section with Platform Framed Floor Systems5B · N.T.S.
- Detail
5B- Name
- Typical Wall Section with Platform Framed Floor Systems
- Group
- Floors & Foundations
- Scale
- N.T.S.
- Source
- The Murus Company, Inc.
