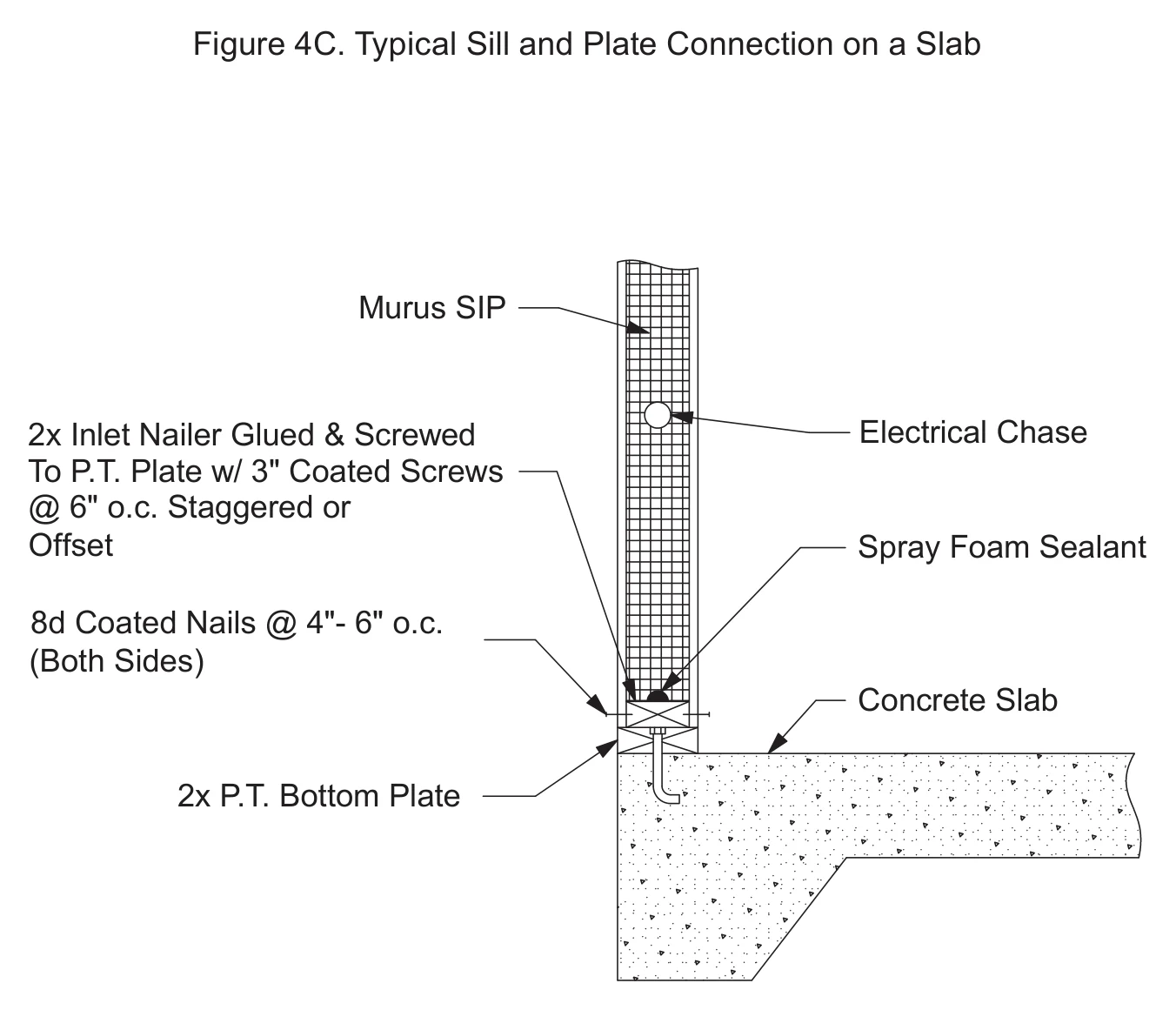

Typical Sill and Plate Connection on a Slab4C · N.T.S.
- Detail
4C- Name
- Typical Sill and Plate Connection on a Slab
- Group
- Floors & Foundations
- Scale
- N.T.S.
- Source
- The Murus Company, Inc.
