Murus detail 6A

Single Key Spline Profile

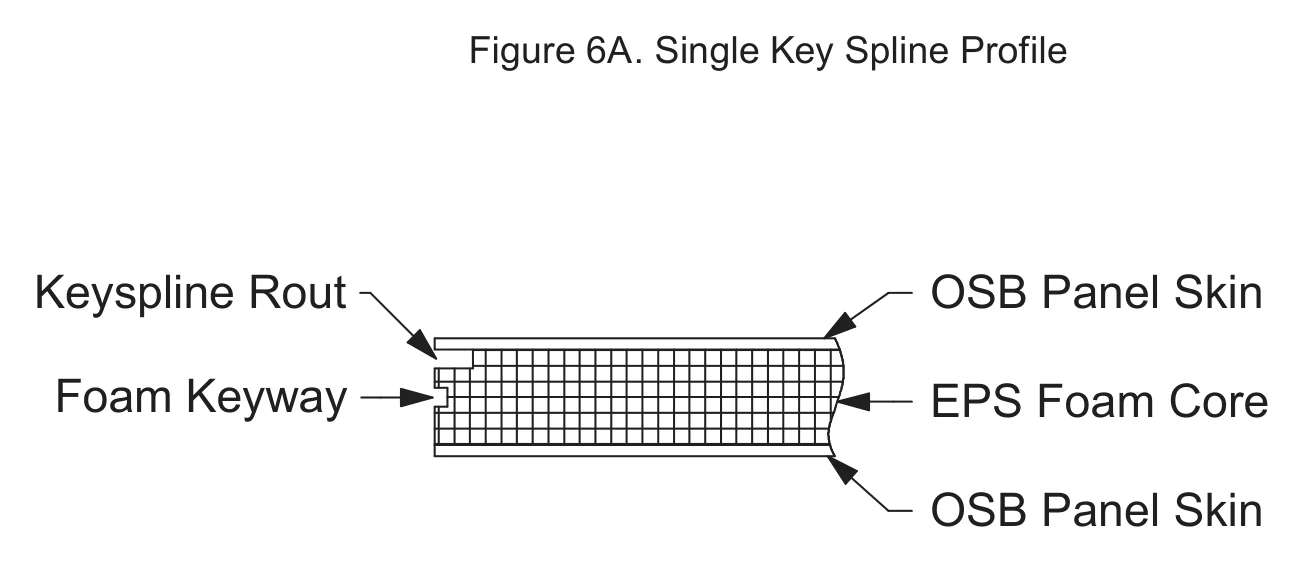

Single Key Spline Profile — the manufacturer's designation for this condition. Drawing is not to scale; download the PDF for the full sheet.

Single Key Spline Profile construction detail drawing with callouts
Single Key Spline Profile6A · N.T.S.
Detail
6A
Name
Single Key Spline Profile
Group
Splines
Scale
N.T.S.
Source
The Murus Company, Inc.

Download PDF

Free, no signup. Confirm conditions against your engineer's requirements and local code.
