Murus detail 10A

Single Key Spline

Single Key Spline — the manufacturer's designation for this condition. Drawing is not to scale; download the PDF for the full sheet.

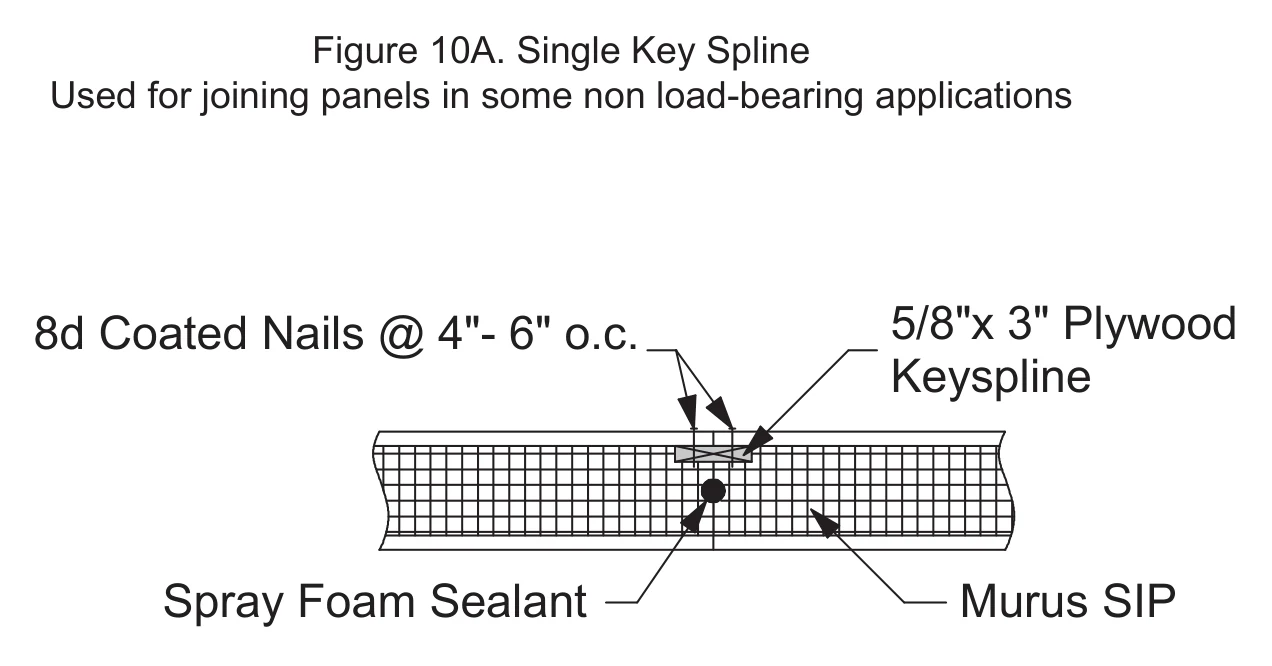

Single Key Spline construction detail drawing with callouts
Single Key Spline10A · N.T.S.
Detail
10A
Name
Single Key Spline
Note
Used for joining panels in some non load-bearing applications
Group
Splines
Scale
N.T.S.
Source
The Murus Company, Inc.

Download PDF

Free, no signup. Confirm conditions against your engineer's requirements and local code.
