Murus detail 10F

I-Joist Spline

I-Joist Spline — the manufacturer's designation for this condition. Drawing is not to scale; download the PDF for the full sheet.

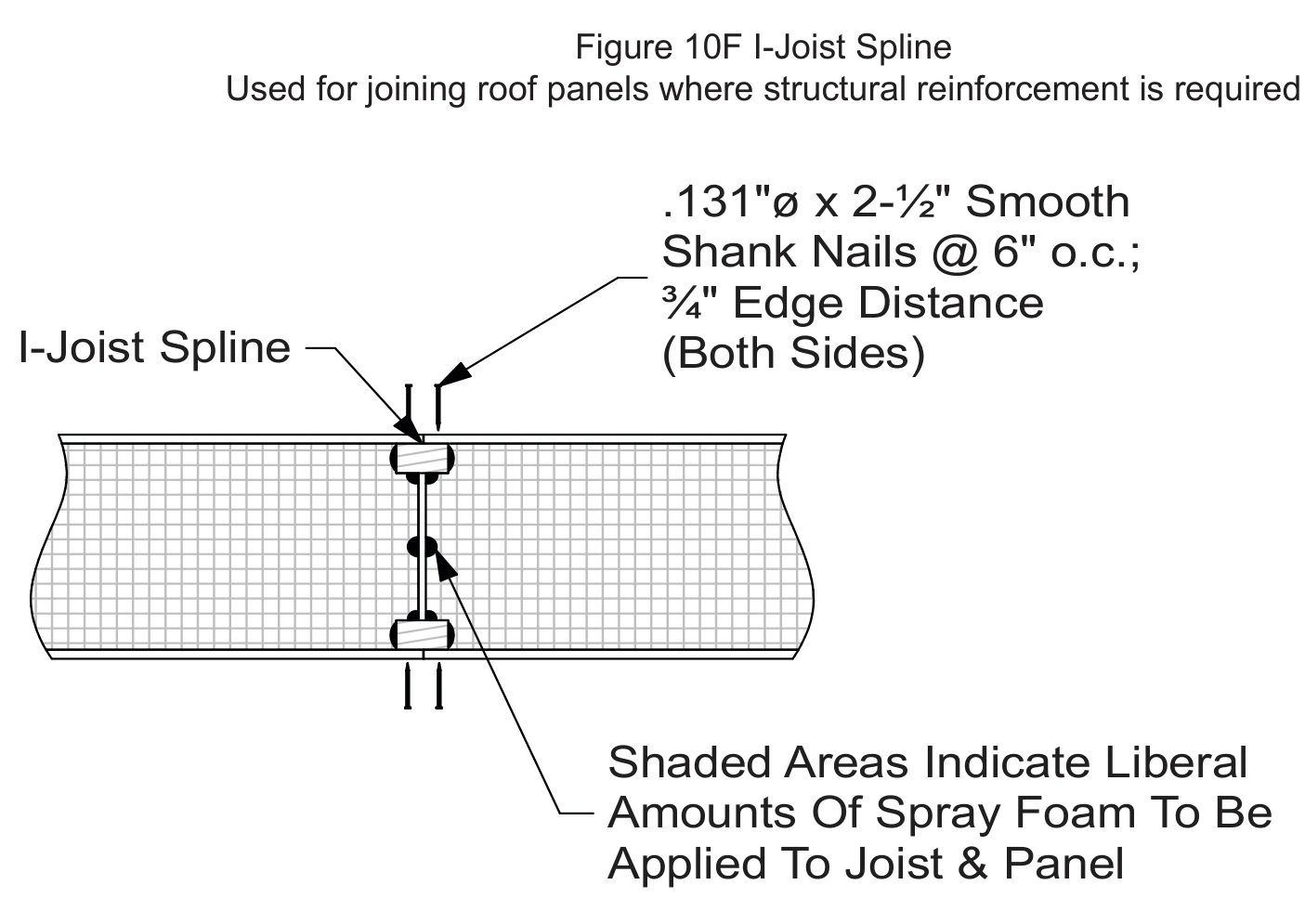

I-Joist Spline construction detail drawing with callouts
I-Joist Spline10F · N.T.S.
Detail
10F
Name
I-Joist Spline
Group
Splines
Scale
N.T.S.
Source
The Murus Company, Inc.

Download PDF

Free, no signup. Confirm conditions against your engineer's requirements and local code.

Splines

Single Key Spline10ADouble Key Spline10BHalf Housed 2x10CHalf Housed 4x10DFully Housed 4x10EAll 55 Murus details→
