Murus detail 10B

Double Key Spline

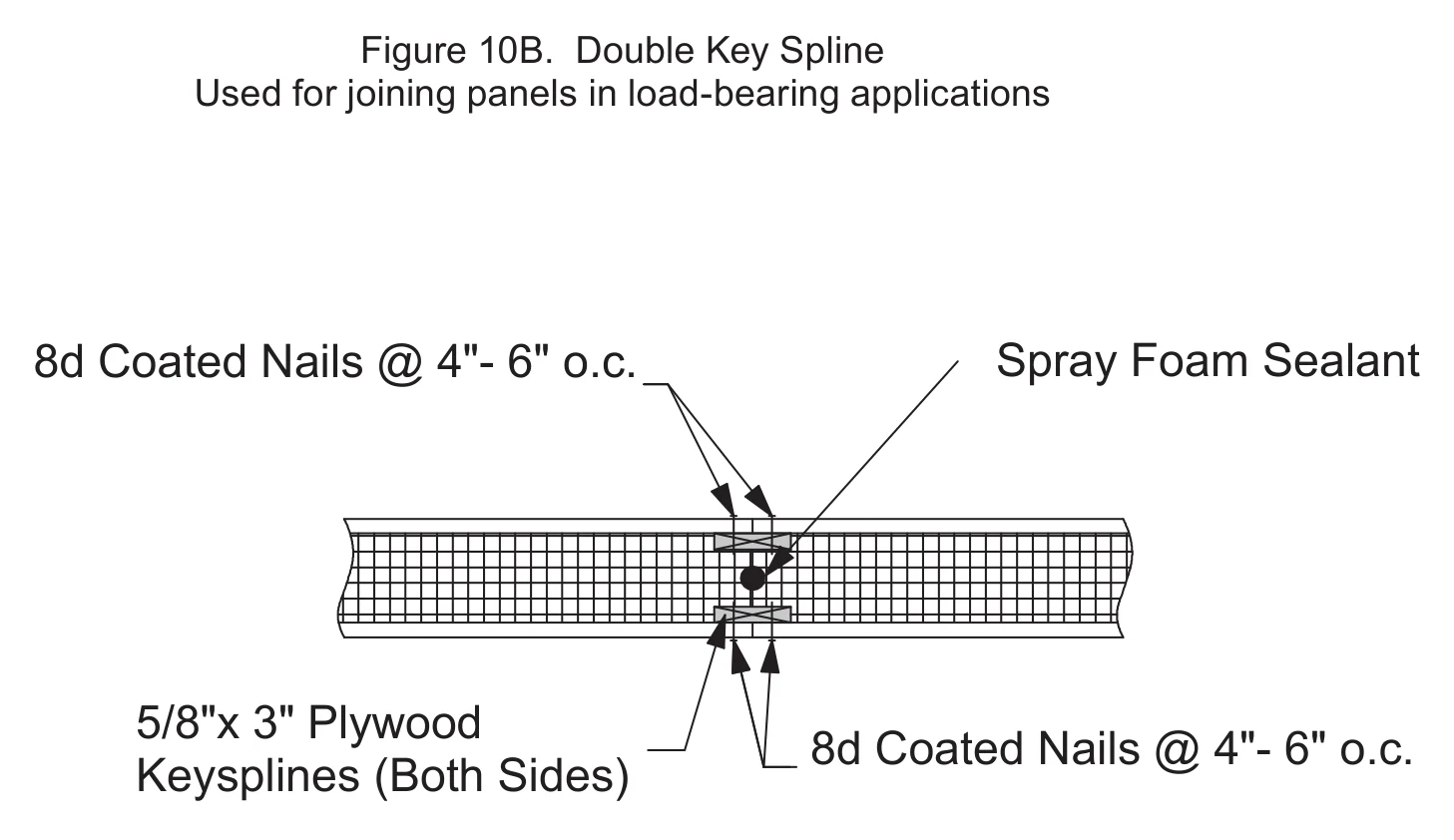

Double Key Spline — the manufacturer's designation for this condition. Drawing is not to scale; download the PDF for the full sheet.

Double Key Spline10B · N.T.S.

Detail: 10B
Name: Double Key Spline
Note: Used for joining panels in load-bearing applications
Group: Splines
Scale: N.T.S.
Source: The Murus Company, Inc.

Download PDF

Free, no signup. Confirm conditions against your engineer's requirements and local code.
