Murus detail 10D

Half Housed 4x

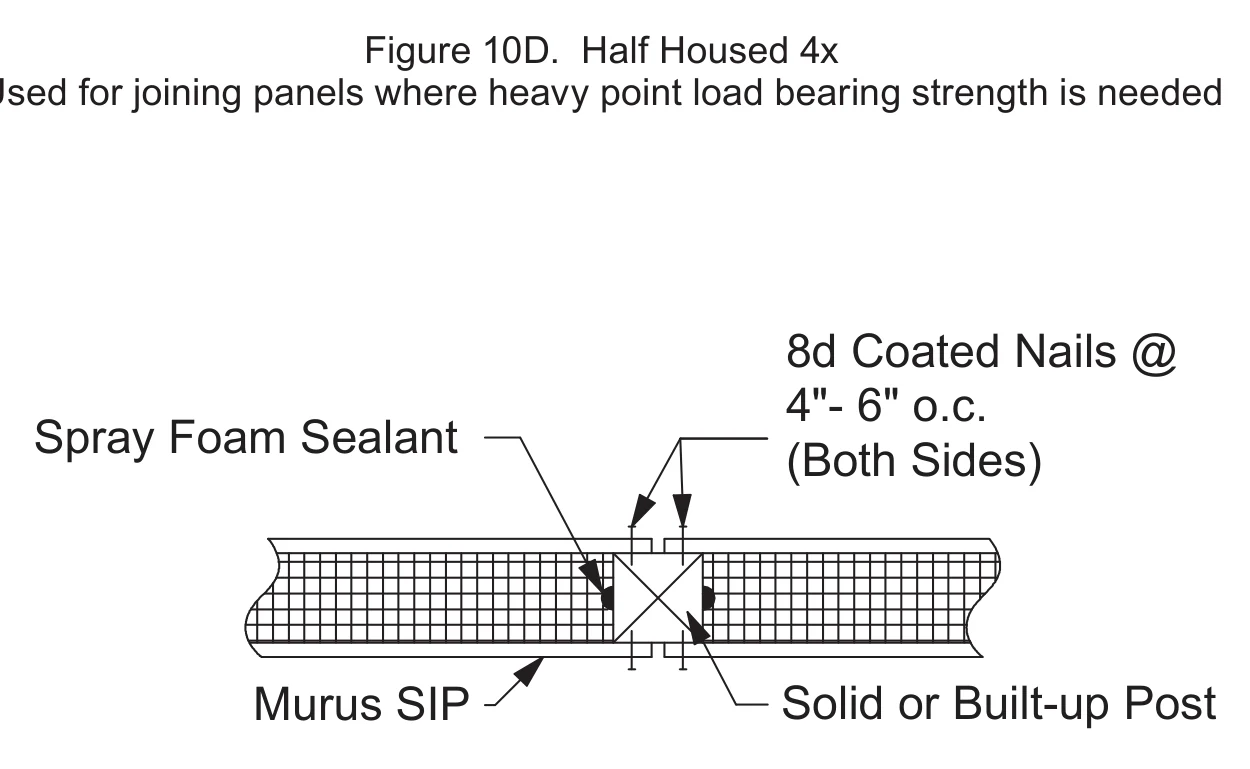

Half Housed 4x — the manufacturer's designation for this condition. Drawing is not to scale; download the PDF for the full sheet.

Half Housed 4x construction detail drawing with callouts
Half Housed 4x10D · N.T.S.
Detail
10D
Name
Half Housed 4x
Note
Used for joining panels where heavy point load bearing strength is needed
Group
Splines
Scale
N.T.S.
Source
The Murus Company, Inc.

Download PDF

Free, no signup. Confirm conditions against your engineer's requirements and local code.
