Murus detail 6C

Double Key Spline Connection Detail

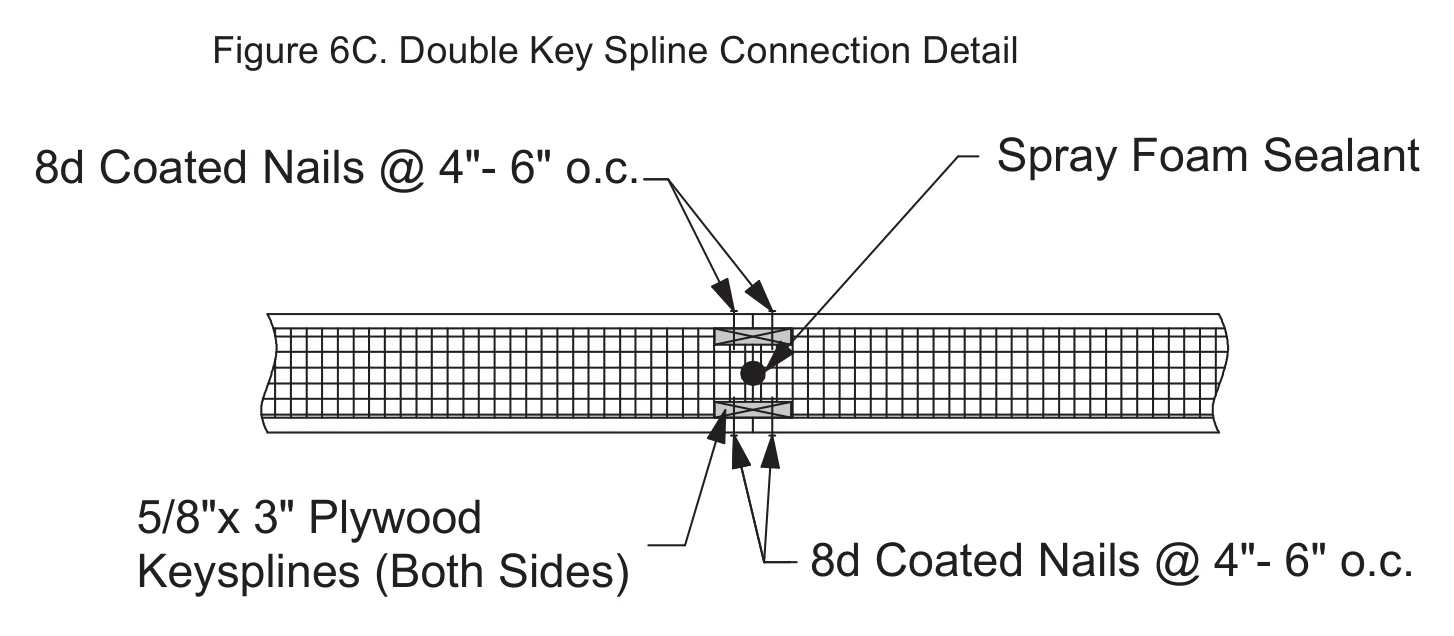

Double Key Spline Connection Detail — the manufacturer's designation for this condition. Drawing is not to scale; download the PDF for the full sheet.

Double Key Spline Connection Detail construction detail drawing with callouts
Double Key Spline Connection Detail6C · N.T.S.
Detail
6C
Name
Double Key Spline Connection Detail
Group
Splines
Scale
N.T.S.
Source
The Murus Company, Inc.

Download PDF

Free, no signup. Confirm conditions against your engineer's requirements and local code.
