Murus detail 7B

Load Bearing Top Plate Connection Detail

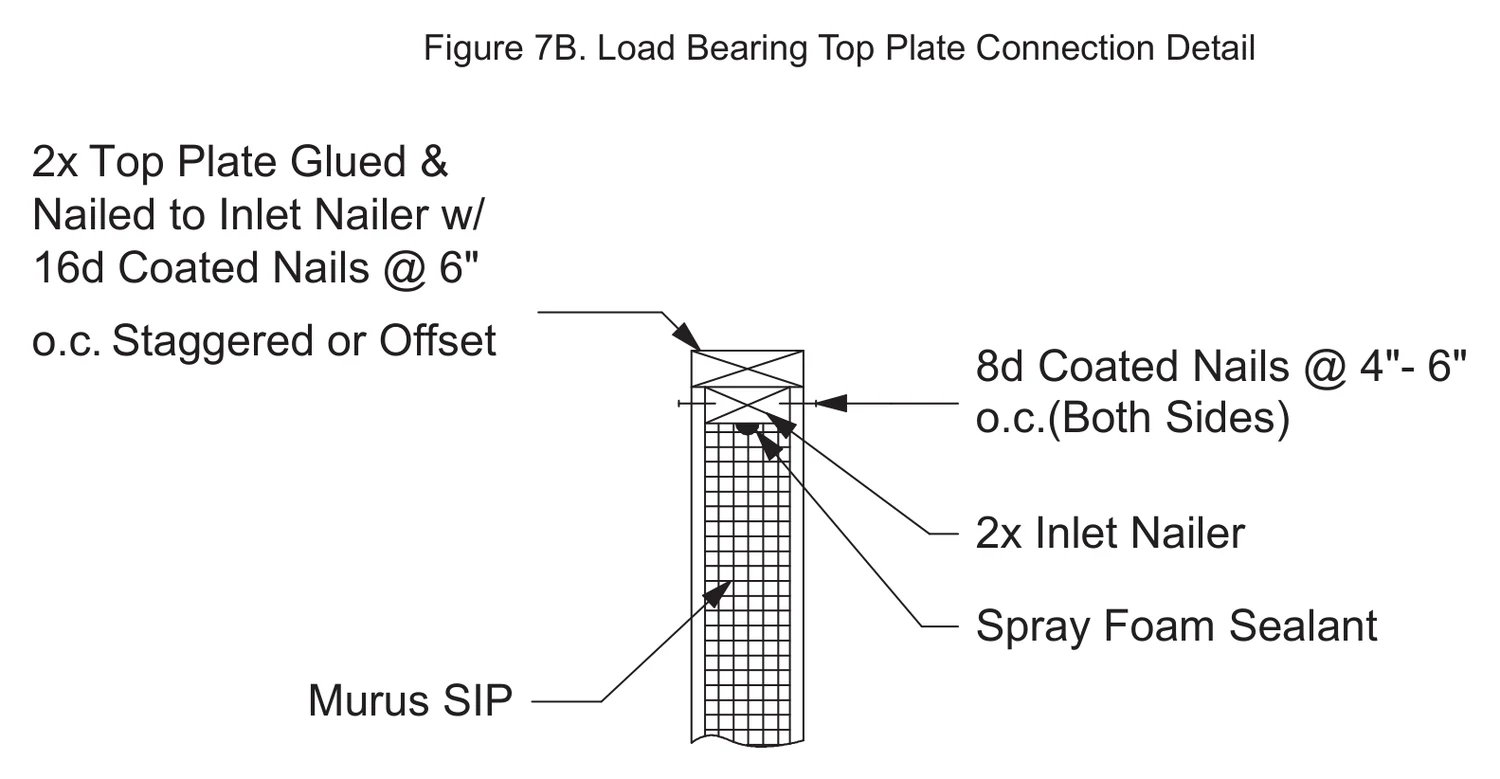

Load Bearing Top Plate Connection Detail — the manufacturer's designation for this condition. Drawing is not to scale; download the PDF for the full sheet.

Load Bearing Top Plate Connection Detail7B · N.T.S.

Detail: 7B
Name: Load Bearing Top Plate Connection Detail
Group: Walls
Scale: N.T.S.
Source: The Murus Company, Inc.

Download PDF

Free, no signup. Confirm conditions against your engineer's requirements and local code.
