Murus detail 9

Girder/Beam Housing (with and without post)

Girder/Beam Housing (with and without post) — the manufacturer's designation for this condition. Drawing is not to scale; download the PDF for the full sheet.

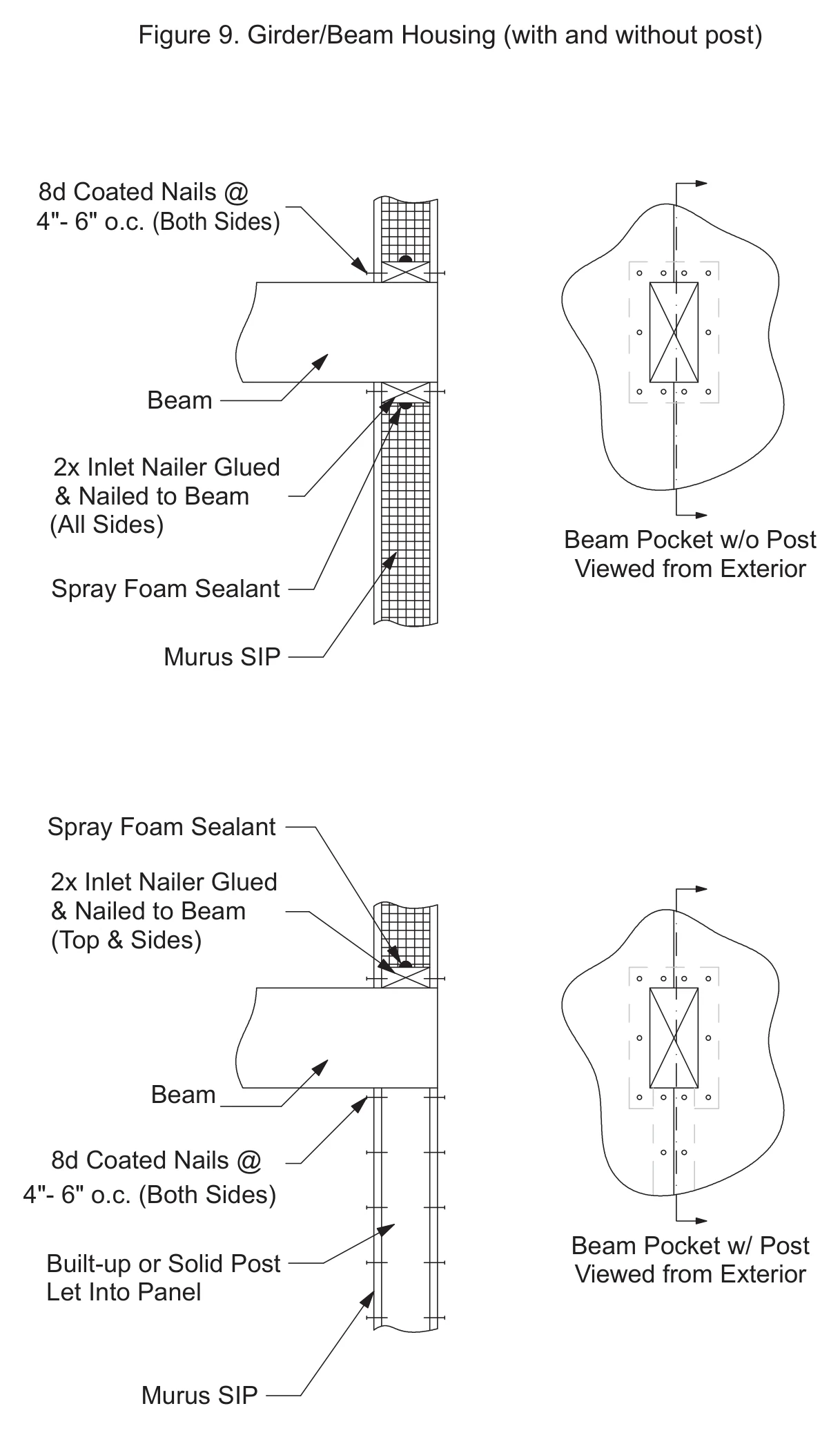

Girder/Beam Housing (with and without post) construction detail drawing with callouts
Girder/Beam Housing (with and without post)9 · N.T.S.
Detail
9
Name
Girder/Beam Housing (with and without post)
Group
Walls
Scale
N.T.S.
Source
The Murus Company, Inc.

Download PDF

Free, no signup. Confirm conditions against your engineer's requirements and local code.
