EPS detail RP4

Beveled Top Plate Roof Connection Detail - Plumb Cut

Double Top Plate / Plumb Cut Eave — the manufacturer's designation for this condition. Drawing is not to scale; download the PDF for the full sheet.

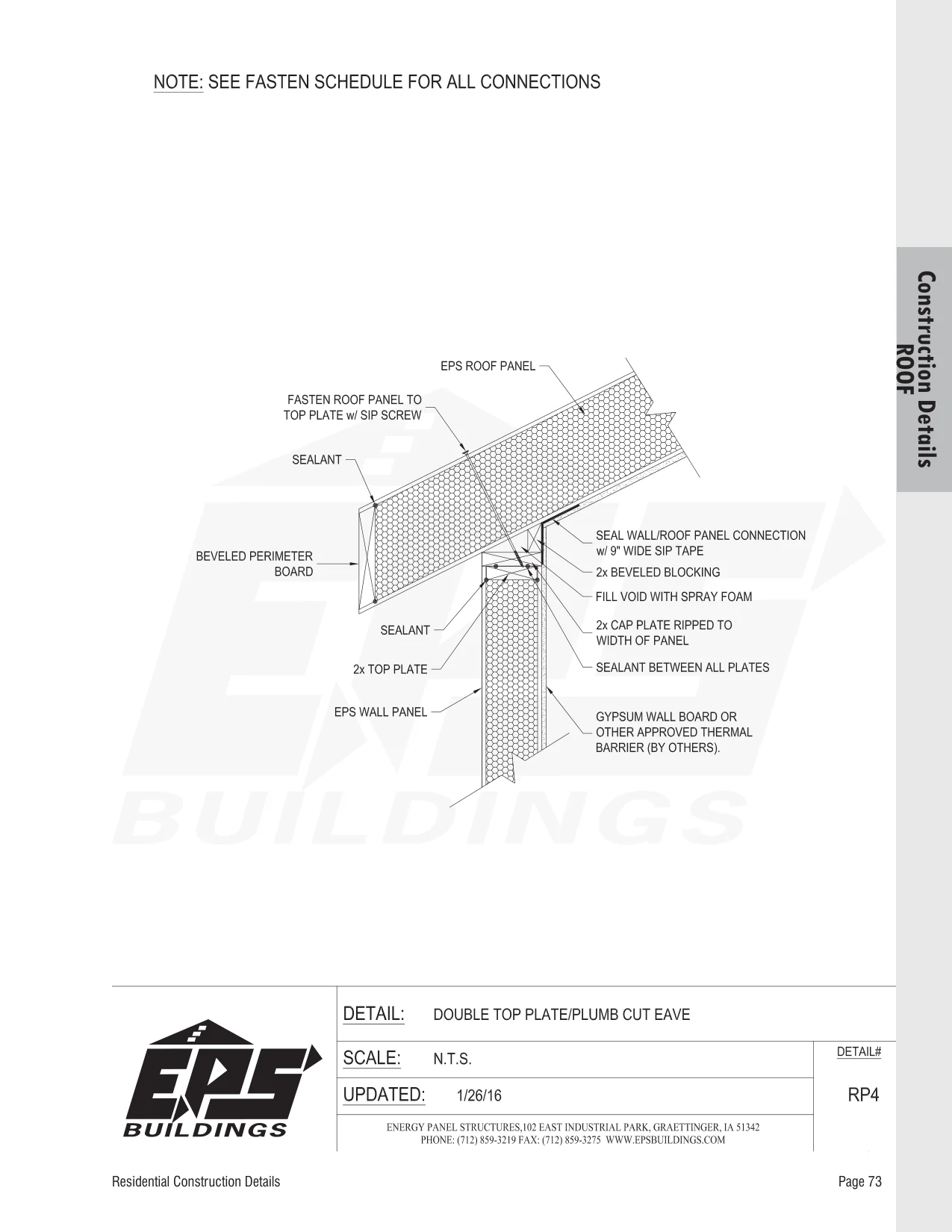

Double Top Plate / Plumb Cut Eave construction detail drawing with callouts

Double Top Plate / Plumb Cut EaveRP4 · N.T.S.

Detail: RP4
Name: Double Top Plate / Plumb Cut Eave
Group: Roof / Wall Connections
Scale: N.T.S.
Source: Energy Panel Structures, Inc.

Free, no signup. Confirm conditions against your engineer's requirements and local code.
