EPS detail RP1

Beveled Block Roof Connection Detail

Double Top Plate / Sq Cut Eave / Rafter Past — the manufacturer's designation for this condition. Drawing is not to scale; download the PDF for the full sheet.

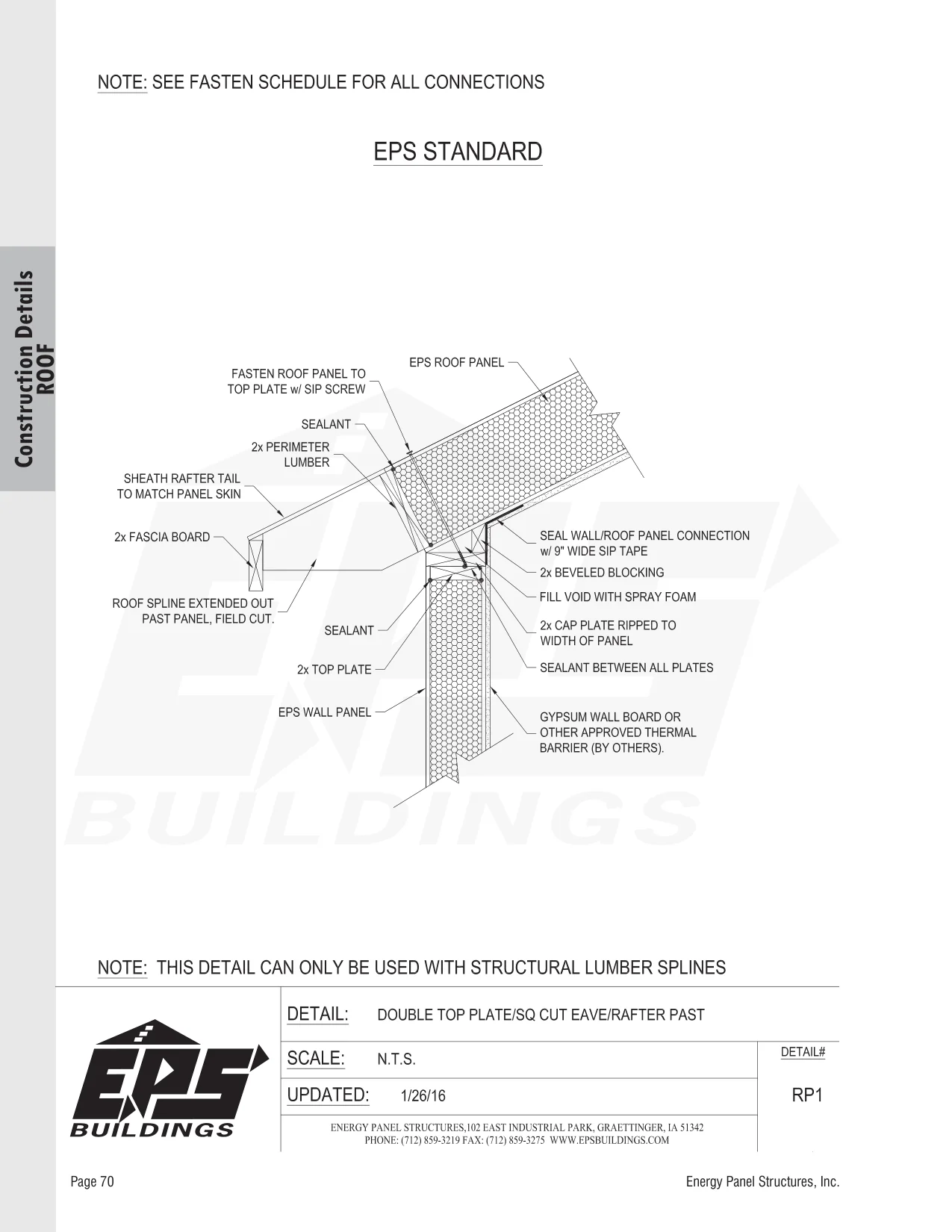

Double Top Plate / Sq Cut Eave / Rafter Past construction detail drawing with callouts

Double Top Plate / Sq Cut Eave / Rafter PastRP1 · N.T.S.

Detail: RP1
Name: Double Top Plate / Sq Cut Eave / Rafter Past
Group: Roof / Wall Connections
Scale: N.T.S.
Source: Energy Panel Structures, Inc.

Free, no signup. Confirm conditions against your engineer's requirements and local code.
