EPS detail RP2

Beveled Block Roof Connection with Overhang Detail

Dbl. Top Plate w/ Beveled Block / Sq Cut Eave — the manufacturer's designation for this condition. Drawing is not to scale; download the PDF for the full sheet.

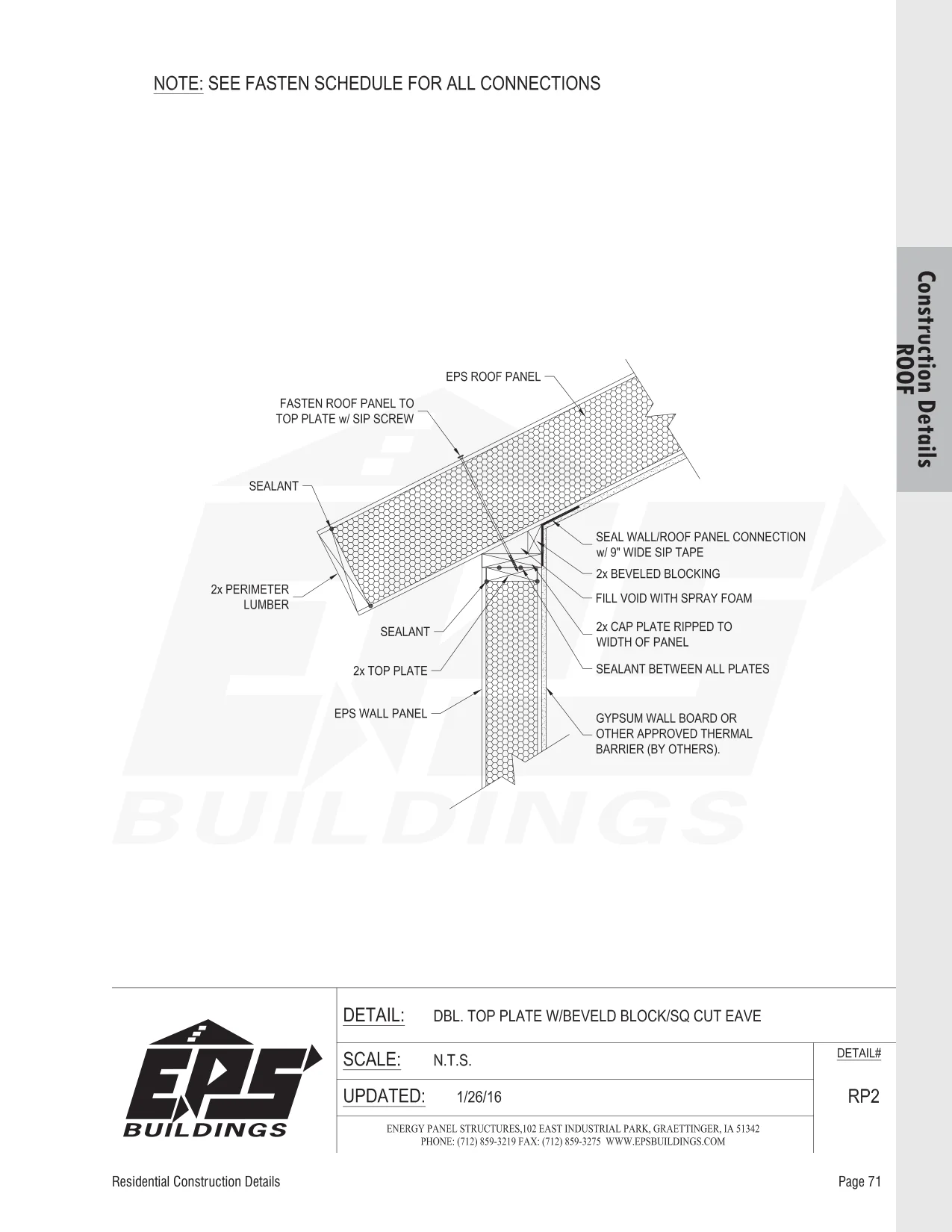

Dbl. Top Plate w/ Beveled Block / Sq Cut Eave construction detail drawing with callouts
Dbl. Top Plate w/ Beveled Block / Sq Cut EaveRP2 · N.T.S.
Detail
RP2
Name
Dbl. Top Plate w/ Beveled Block / Sq Cut Eave
Group
Roof / Wall Connections
Scale
N.T.S.
Source
Energy Panel Structures, Inc.

Download PDF

Free, no signup. Confirm conditions against your engineer's requirements and local code.
