EPS detail PP3

Panel Past / Floor Truss / Foundation Panel

Panel Past / Floor Truss / Foundation Panel — the manufacturer's designation for this condition. Drawing is not to scale; download the PDF for the full sheet.

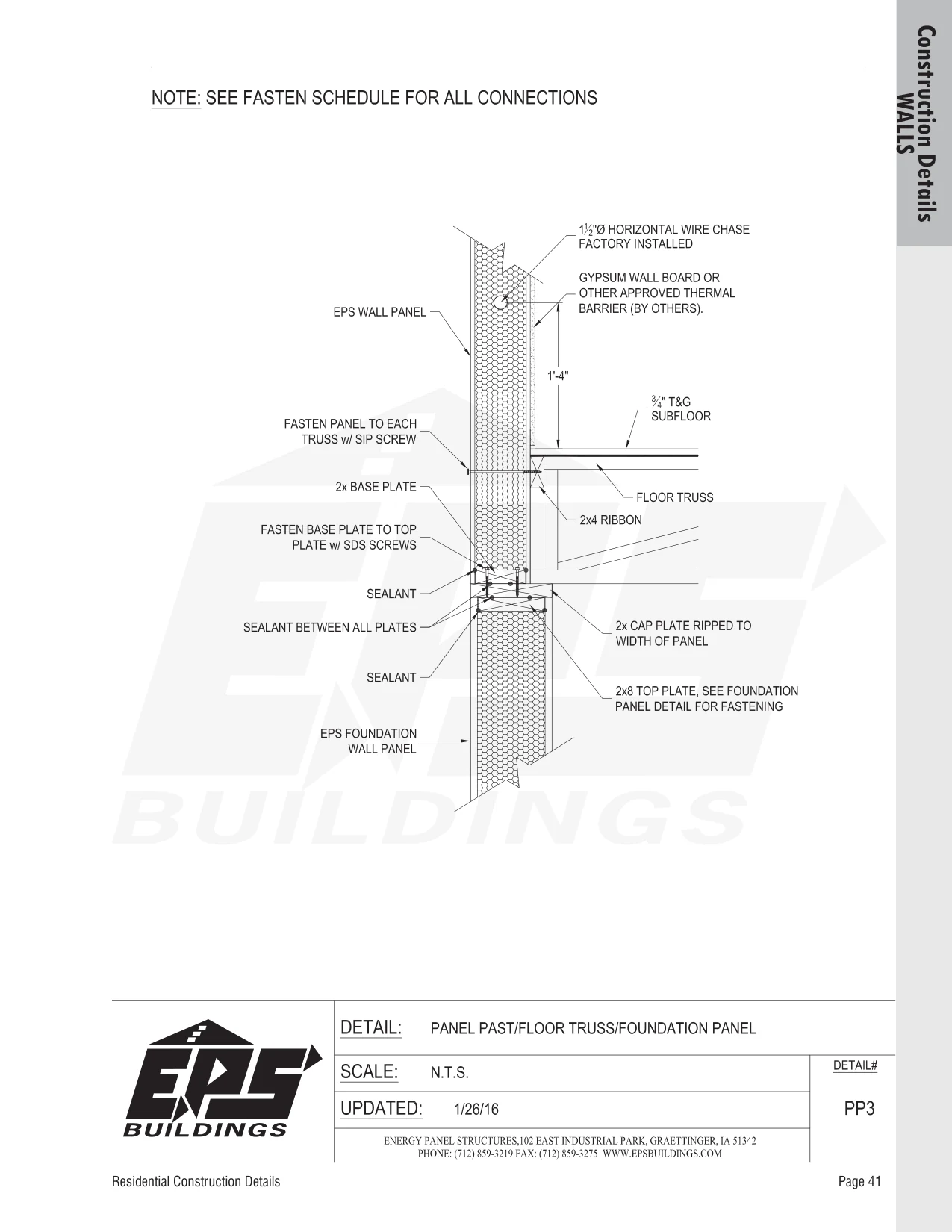

Panel Past / Floor Truss / Foundation Panel construction detail drawing with callouts
Panel Past / Floor Truss / Foundation PanelPP3 · N.T.S.
Detail
PP3
Name
Panel Past / Floor Truss / Foundation Panel
Group
Floors & Foundations
Scale
N.T.S.
Source
Energy Panel Structures, Inc.

Download PDF

Free, no signup. Confirm conditions against your engineer's requirements and local code.

Floors & Foundations

Foundation Connection DetailPF1Panel Past / Floor Truss / ConcretePP1Panel Past / Floor Truss Parallel / ConcretePP2Panel Past / Fl. Truss Par. / Foundation PanelPP4Panel / Hanging Floor Truss / PanelPHF1All 56 EPS details→
