EPS detail PP1

Panel Past / Floor Truss / Concrete

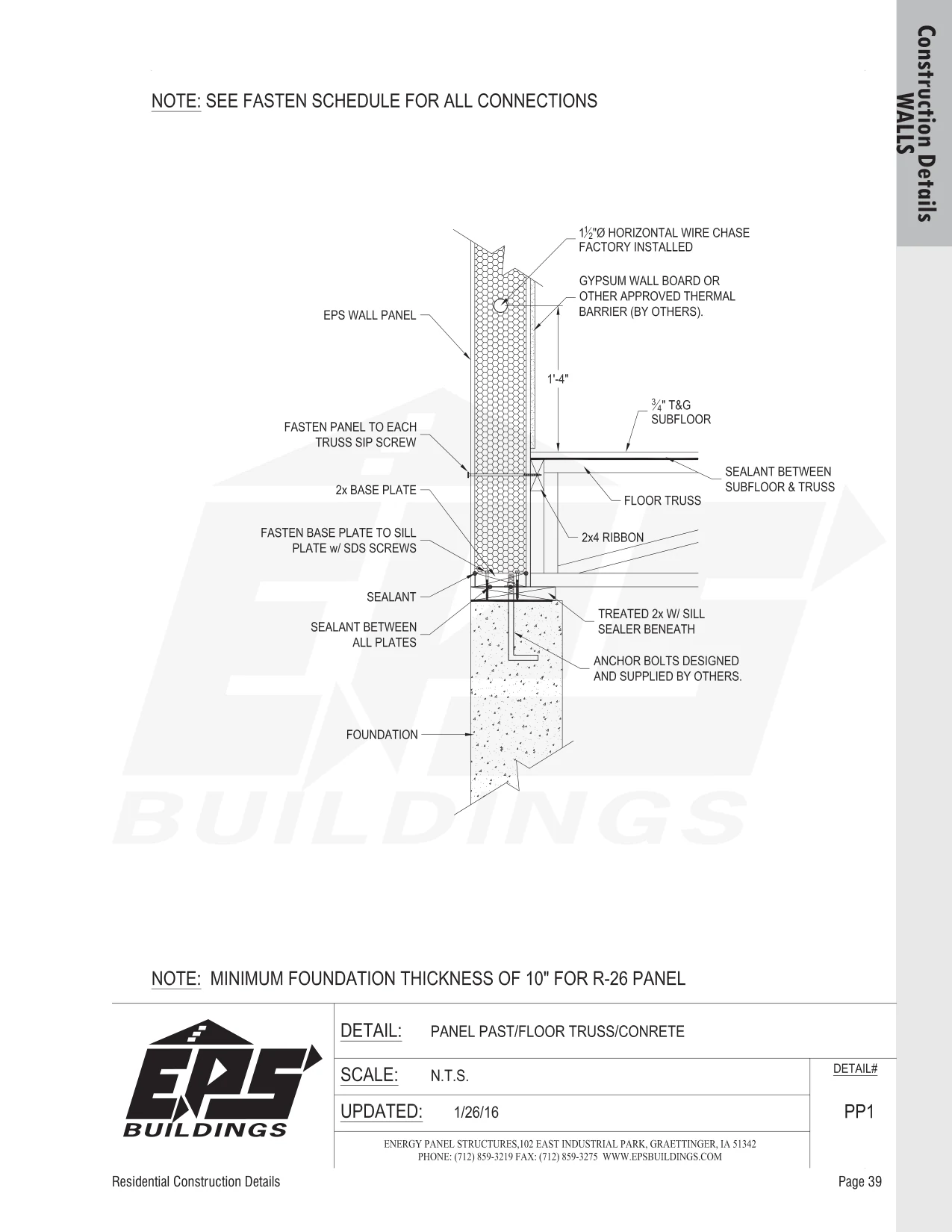

Panel Past / Floor Truss / Concrete — the manufacturer's designation for this condition. Drawing is not to scale; download the PDF for the full sheet.

Panel Past / Floor Truss / Concrete construction detail drawing with callouts
Panel Past / Floor Truss / ConcretePP1 · N.T.S.
Detail
PP1
Name
Panel Past / Floor Truss / Concrete
Group
Floors & Foundations
Scale
N.T.S.
Source
Energy Panel Structures, Inc.

Download PDF

Free, no signup. Confirm conditions against your engineer's requirements and local code.
