EPS detail PHF1

Panel / Hanging Floor Truss / Panel

Panel / Hanging Floor Truss / Panel — the manufacturer's designation for this condition. Drawing is not to scale; download the PDF for the full sheet.

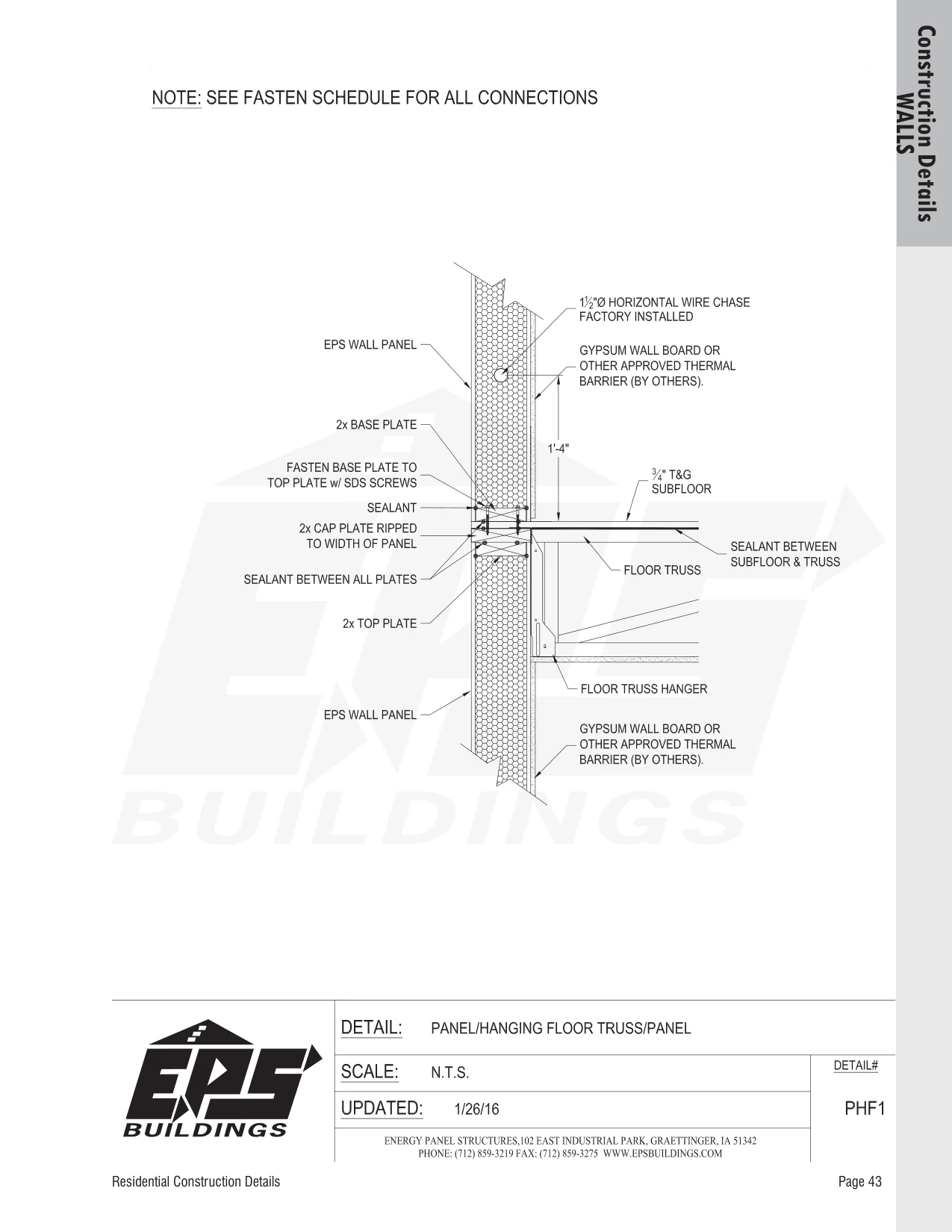

Panel / Hanging Floor Truss / Panel construction detail drawing with callouts
Panel / Hanging Floor Truss / PanelPHF1 · N.T.S.
Detail
PHF1
Name
Panel / Hanging Floor Truss / Panel
Group
Floors & Foundations
Scale
N.T.S.
Source
Energy Panel Structures, Inc.

Download PDF

Free, no signup. Confirm conditions against your engineer's requirements and local code.
