EPS detail PC3

Panel / Concrete

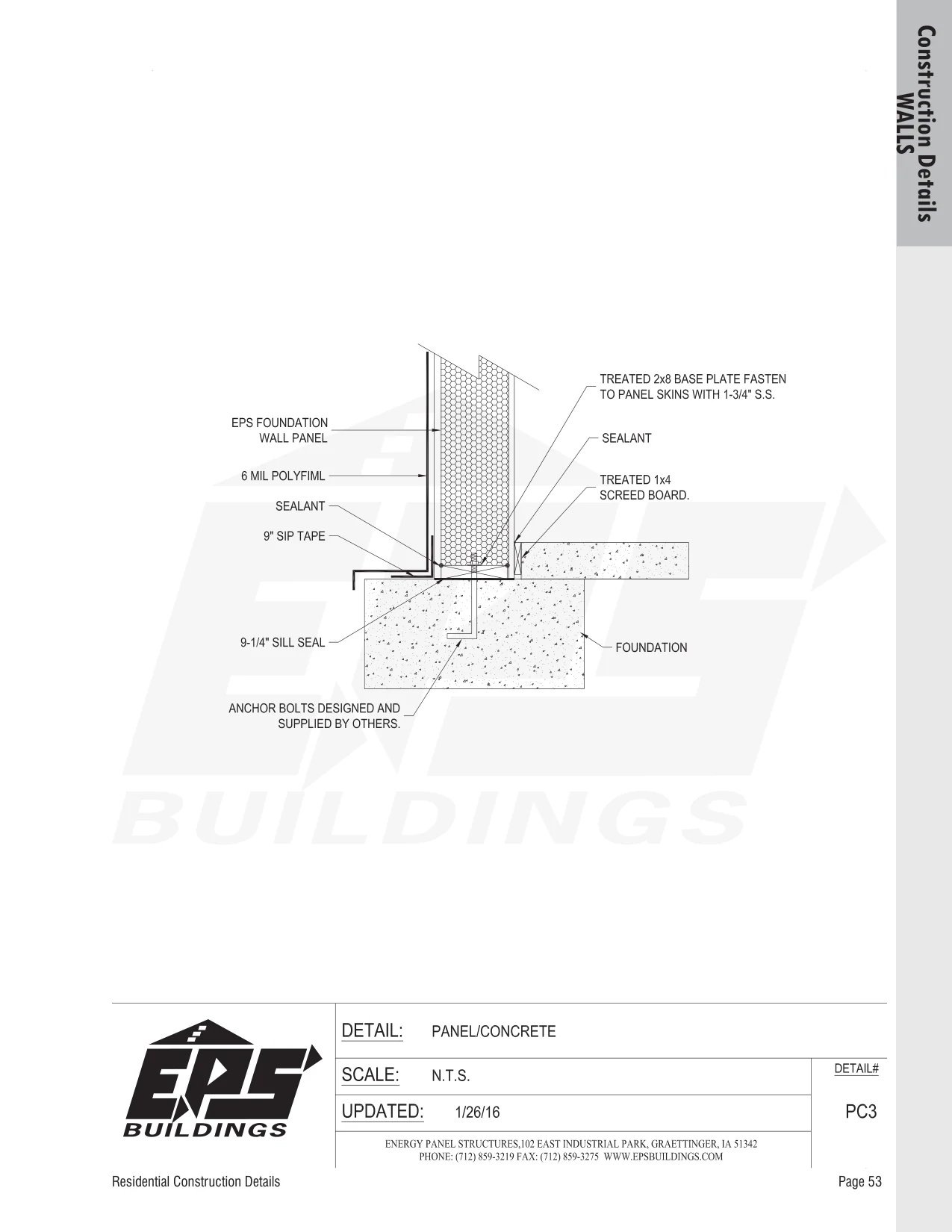

Panel / Concrete — the manufacturer's designation for this condition. Drawing is not to scale; download the PDF for the full sheet.

Panel / Concrete construction detail drawing with callouts
Panel / ConcretePC3 · N.T.S.
Detail
PC3
Name
Panel / Concrete
Group
Floors & Foundations
Scale
N.T.S.
Source
Energy Panel Structures, Inc.

Download PDF

Free, no signup. Confirm conditions against your engineer's requirements and local code.
