Murus detail 19A

Typical Roof Peak or Ridge Detail

Typical Roof Peak or Ridge Detail — the manufacturer's designation for this condition. Drawing is not to scale; download the PDF for the full sheet.

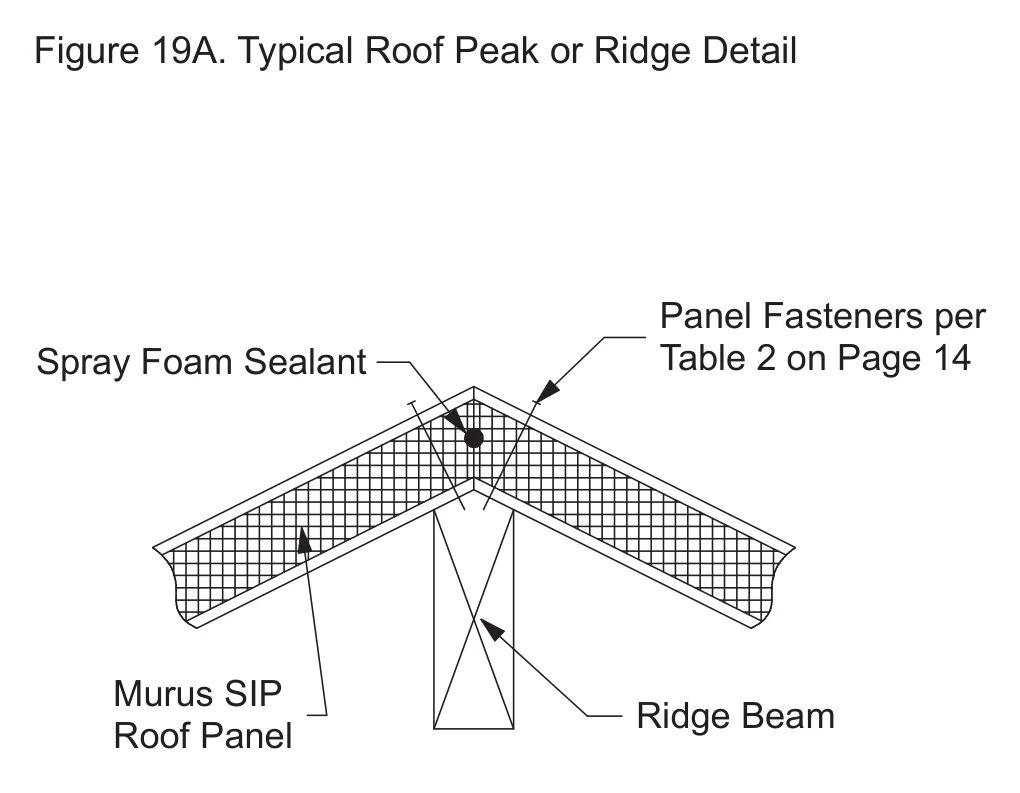

Typical Roof Peak or Ridge Detail construction detail drawing with callouts
Typical Roof Peak or Ridge Detail19A · N.T.S.
Detail
19A
Name
Typical Roof Peak or Ridge Detail
Group
Ridge & Beam
Scale
N.T.S.
Source
The Murus Company, Inc.

Download PDF

Free, no signup. Confirm conditions against your engineer's requirements and local code.
