Murus detail 19B

Optional Roof Peak or Ridge Detail for 12:12 Pitch

Optional Roof Peak or Ridge Detail for 12:12 Pitch — the manufacturer's designation for this condition. Drawing is not to scale; download the PDF for the full sheet.

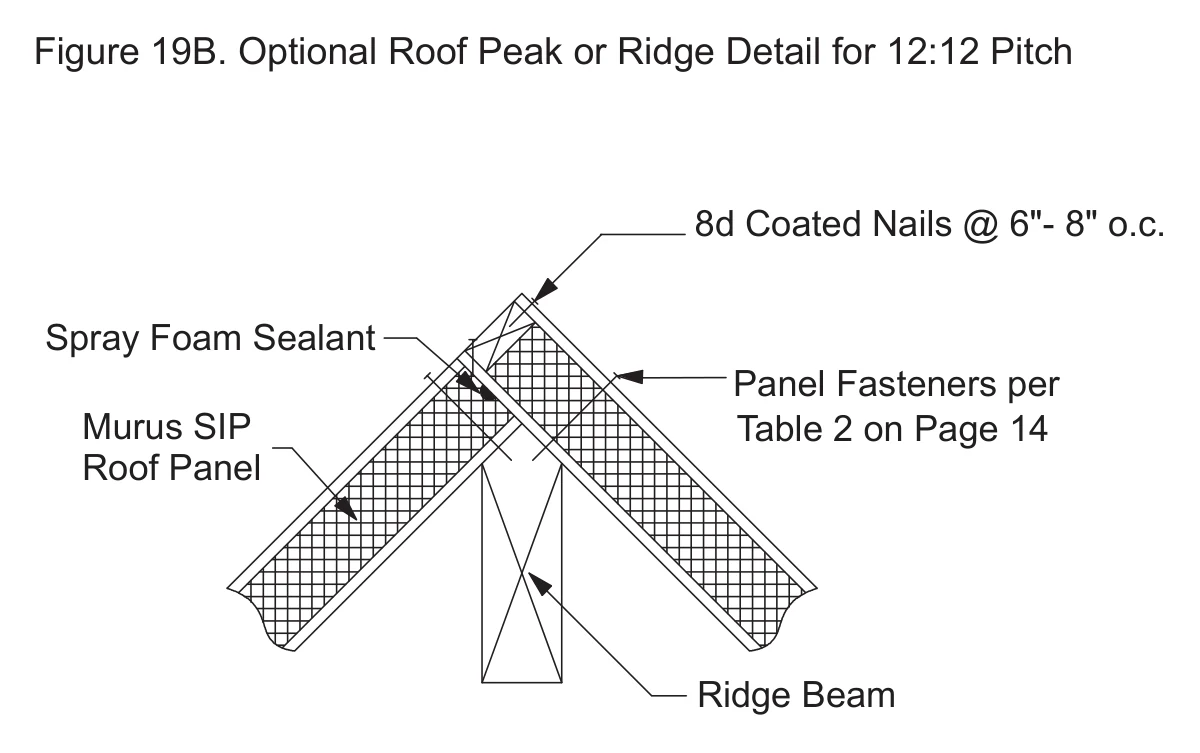

Optional Roof Peak or Ridge Detail for 12:12 Pitch construction detail drawing with callouts
Optional Roof Peak or Ridge Detail for 12:12 Pitch19B · N.T.S.
Detail
19B
Name
Optional Roof Peak or Ridge Detail for 12:12 Pitch
Group
Ridge & Beam
Scale
N.T.S.
Source
The Murus Company, Inc.

Download PDF

Free, no signup. Confirm conditions against your engineer's requirements and local code.
