EPS detail FP1

Floor Panel / Concrete

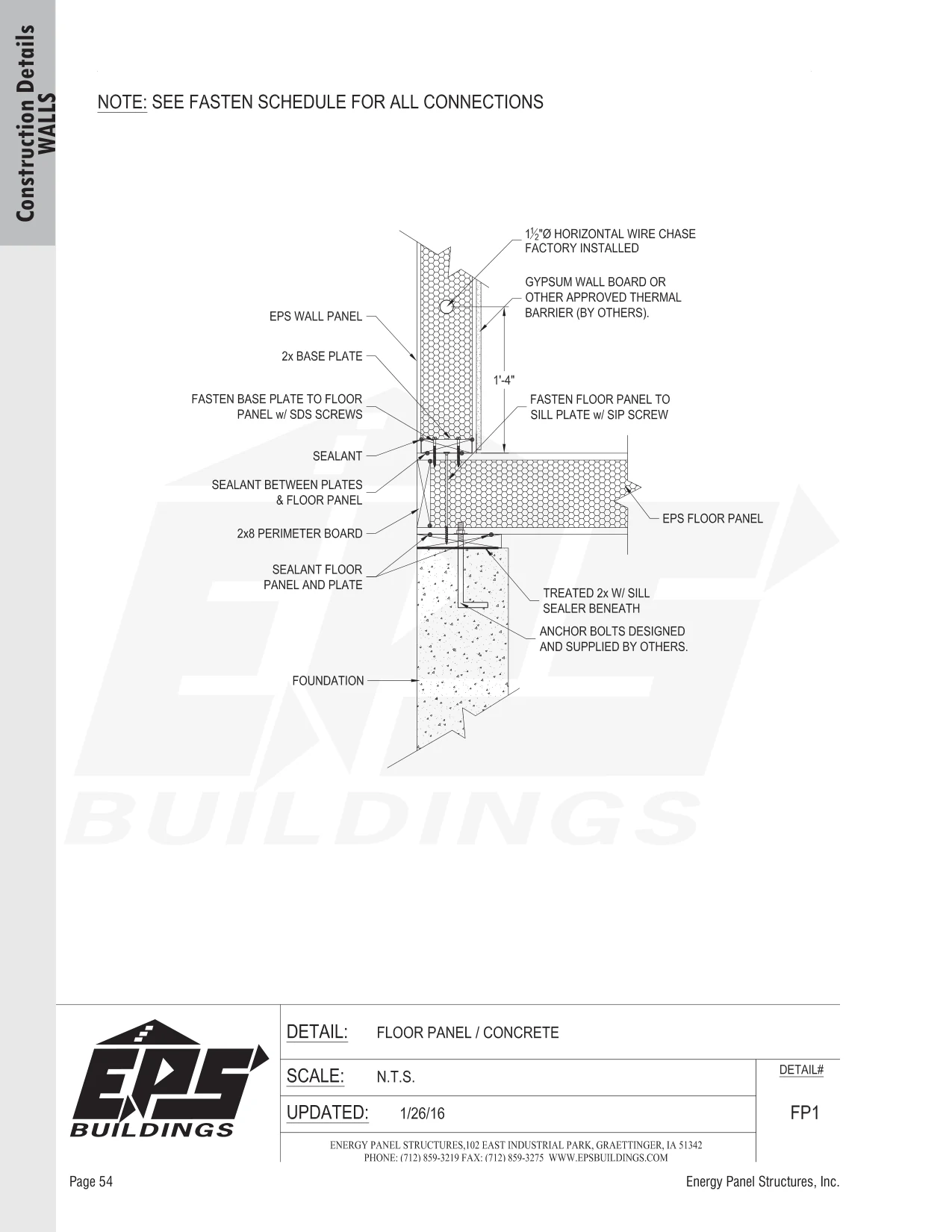

Floor Panel / Concrete — the manufacturer's designation for this condition. Drawing is not to scale; download the PDF for the full sheet.

Floor Panel / Concrete construction detail drawing with callouts
Floor Panel / ConcreteFP1 · N.T.S.
Detail
FP1
Name
Floor Panel / Concrete
Group
Floors & Foundations
Scale
N.T.S.
Source
Energy Panel Structures, Inc.

Download PDF

Free, no signup. Confirm conditions against your engineer's requirements and local code.
