Typical Roof Dropped Truss

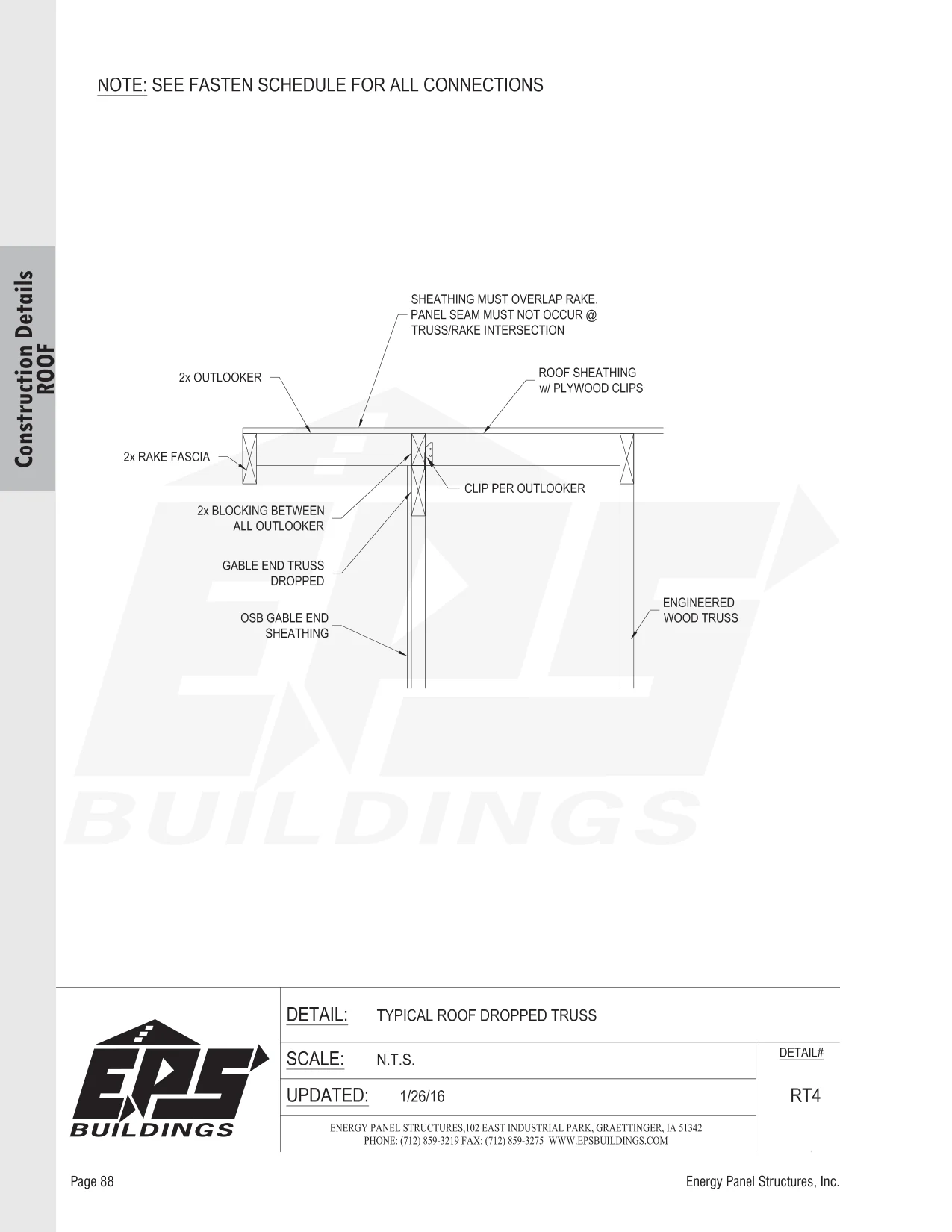

Typical Roof Dropped Truss — the manufacturer's designation for this condition. Drawing is not to scale; download the PDF for the full sheet.

Typical Roof Dropped TrussRT4 · N.T.S.

Detail: RT4
Name: Typical Roof Dropped Truss
Group: Roof Trusses
Scale: N.T.S.
Source: Energy Panel Structures, Inc.

Download PDF

Free, no signup. Confirm conditions against your engineer's requirements and local code.
