Dbl. Top Plate / Typical Endwall Roof Truss

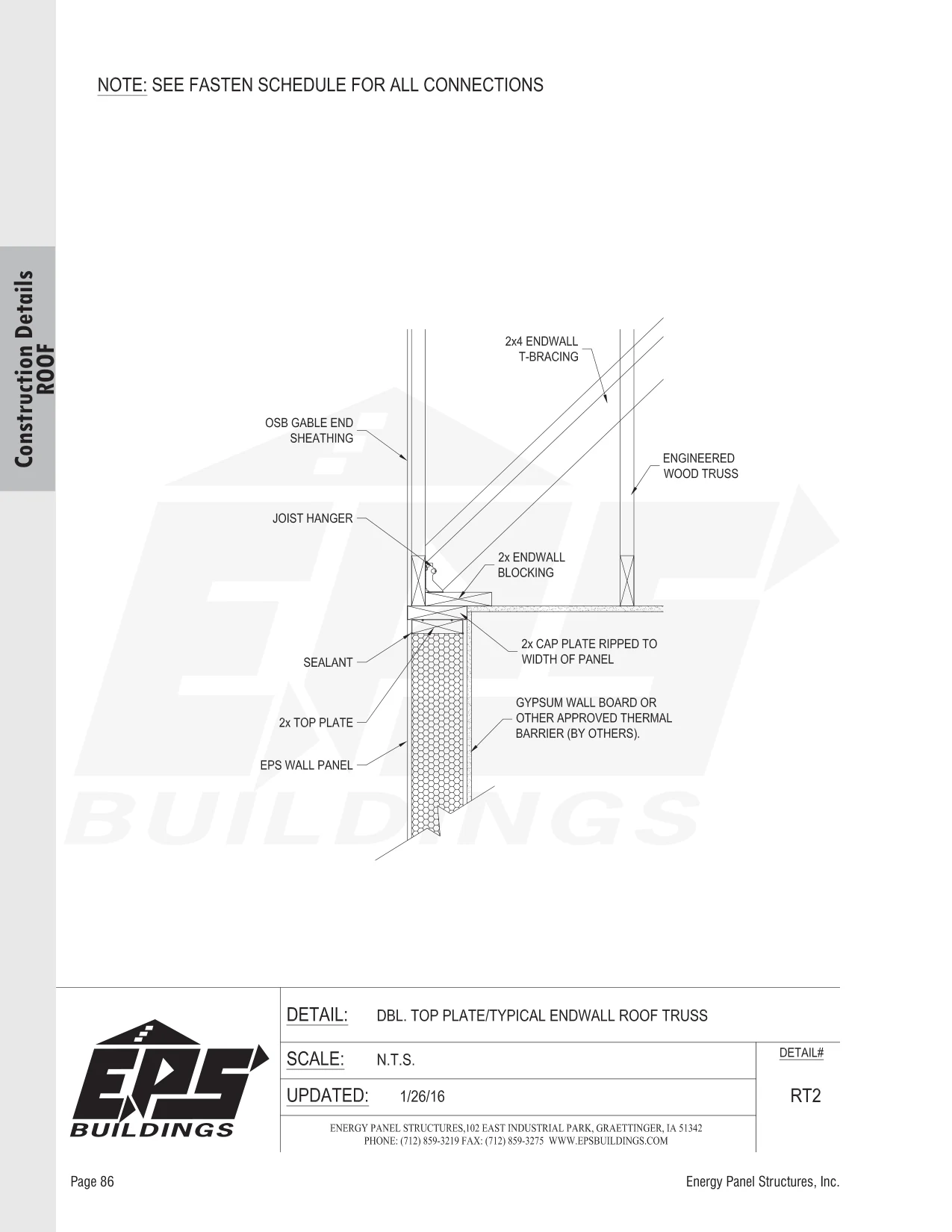

Dbl. Top Plate / Typical Endwall Roof Truss — the manufacturer's designation for this condition. Drawing is not to scale; download the PDF for the full sheet.

Dbl. Top Plate / Typical Endwall Roof TrussRT2 · N.T.S.

Detail: RT2
Name: Dbl. Top Plate / Typical Endwall Roof Truss
Group: Roof Trusses
Scale: N.T.S.
Source: Energy Panel Structures, Inc.

Download PDF

Free, no signup. Confirm conditions against your engineer's requirements and local code.
