EPS detail DW2

Roof Truss to Division Wall

Roof Truss to Division Wall — the manufacturer's designation for this condition. Drawing is not to scale; download the PDF for the full sheet.

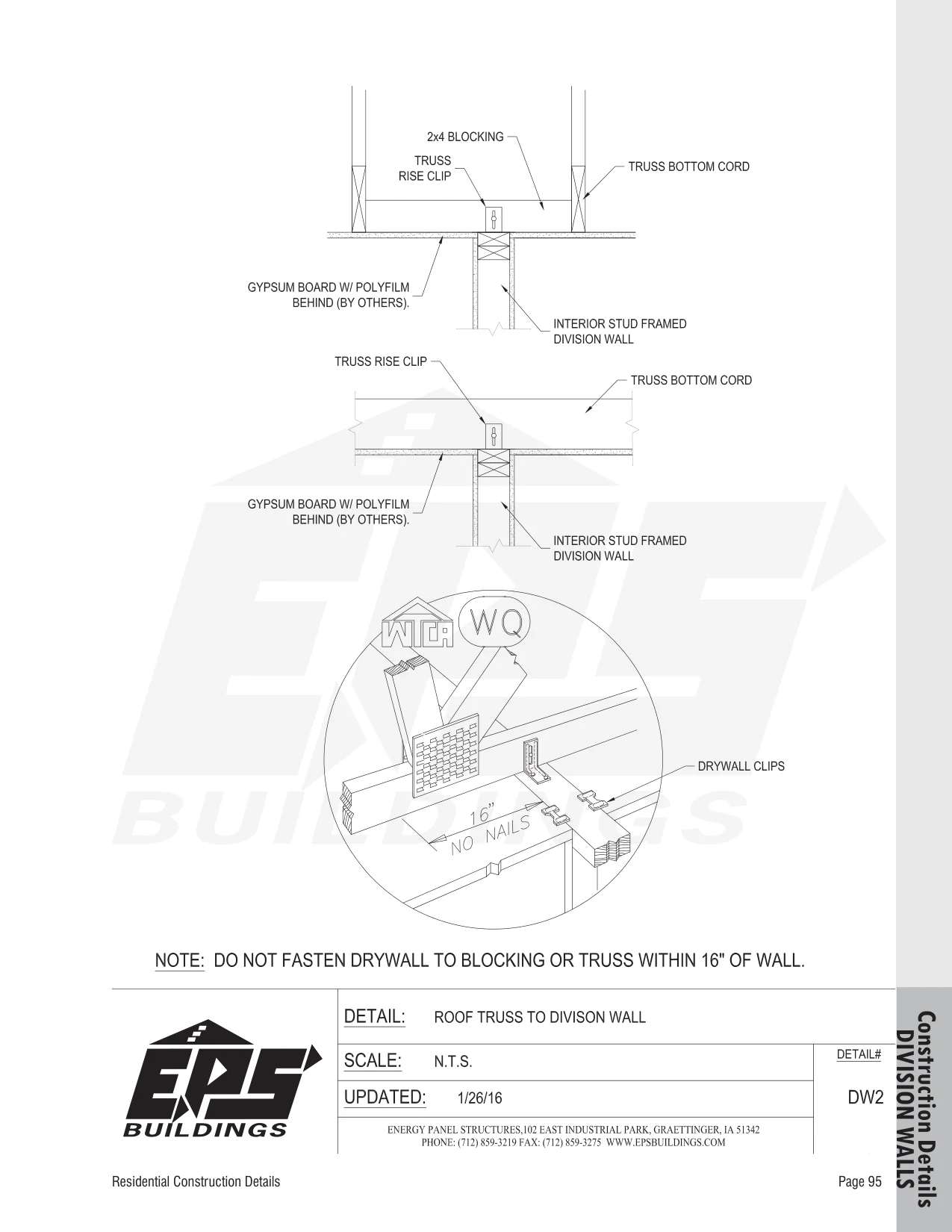

Roof Truss to Division Wall construction detail drawing with callouts
Roof Truss to Division WallDW2 · N.T.S.
Detail
DW2
Name
Roof Truss to Division Wall
Group
Division Walls
Scale
N.T.S.
Source
Energy Panel Structures, Inc.

Download PDF

Free, no signup. Confirm conditions against your engineer's requirements and local code.

Division Walls

Panel to Division WallDW1All 56 EPS details→
