EPS detail DW1

Panel to Division Wall

Panel to Division Wall — the manufacturer's designation for this condition. Drawing is not to scale; download the PDF for the full sheet.

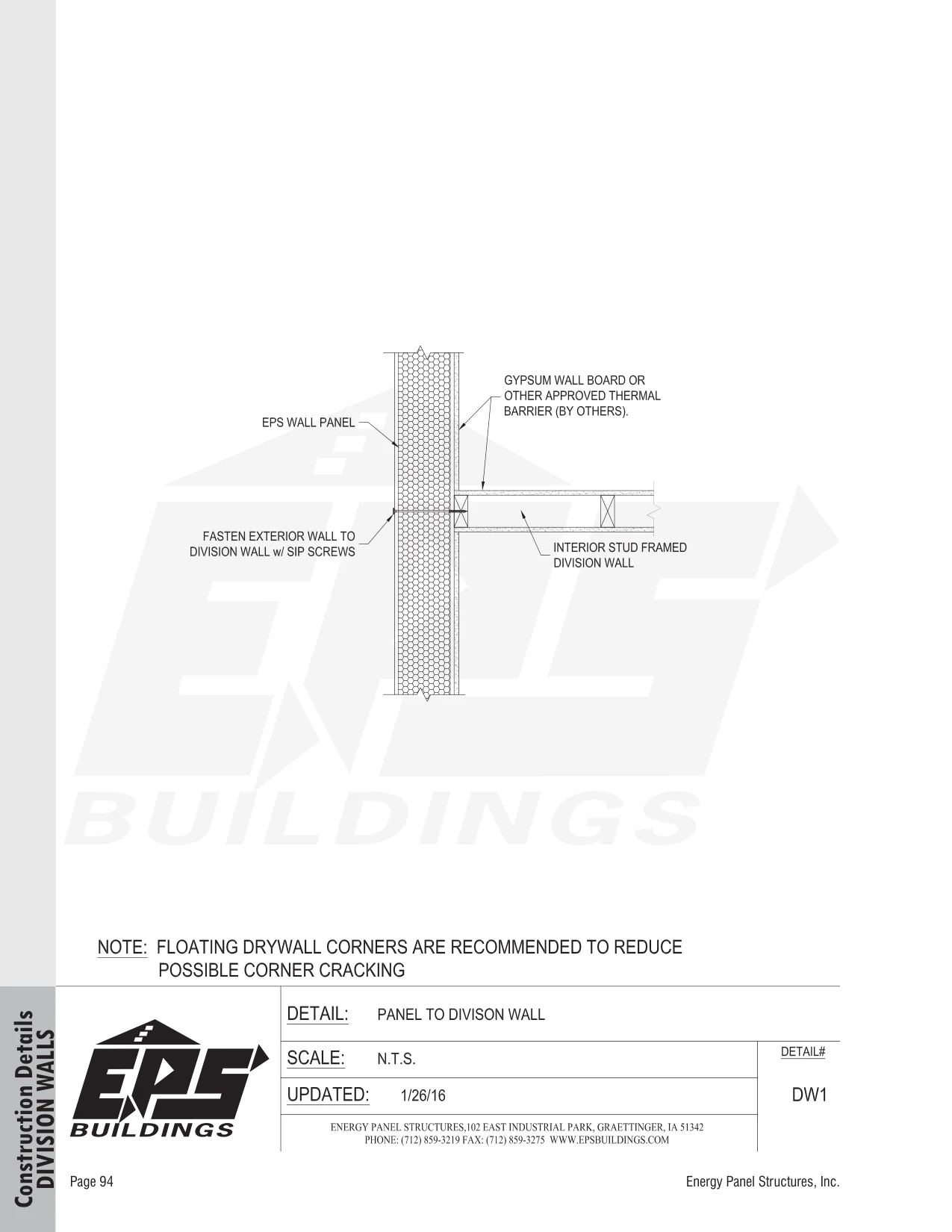

Panel to Division Wall construction detail drawing with callouts
Panel to Division WallDW1 · N.T.S.
Detail
DW1
Name
Panel to Division Wall
Group
Division Walls
Scale
N.T.S.
Source
Energy Panel Structures, Inc.

Download PDF

Free, no signup. Confirm conditions against your engineer's requirements and local code.
