Murus detail 21

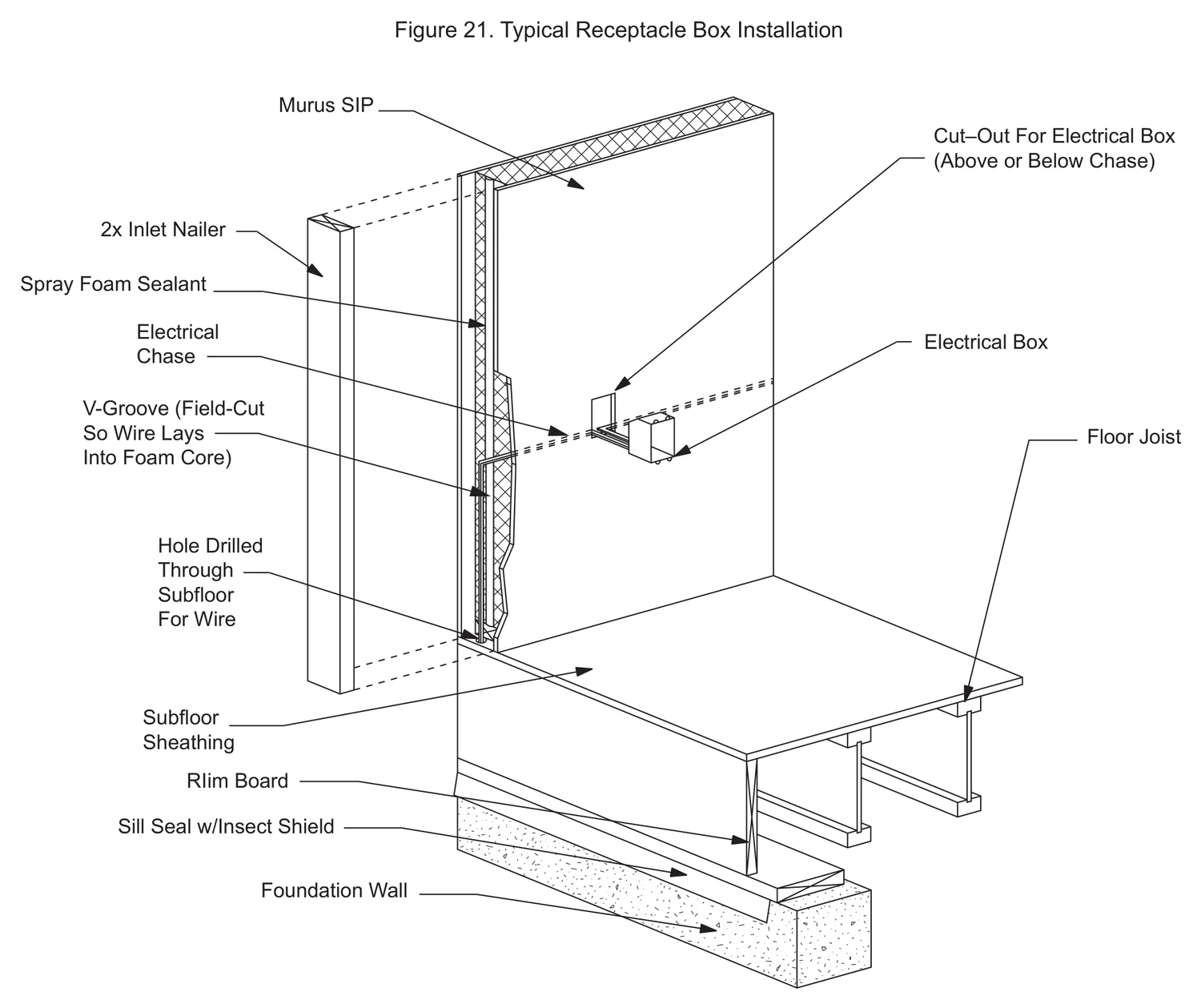

Typical Receptacle Box Installation

Typical Receptacle Box Installation — the manufacturer's designation for this condition. Drawing is not to scale; download the PDF for the full sheet.

Typical Receptacle Box Installation construction detail drawing with callouts
Typical Receptacle Box Installation21 · N.T.S.
Detail
21
Name
Typical Receptacle Box Installation
Group
Electrical
Scale
N.T.S.
Source
The Murus Company, Inc.

Download PDF

Free, no signup. Confirm conditions against your engineer's requirements and local code.
