Murus detail 11B

Corner Connection with Miter Less Than or Greater Than 90 Degrees

Corner Connection with Miter Less Than or Greater Than 90 Degrees — the manufacturer's designation for this condition. Drawing is not to scale; download the PDF for the full sheet.

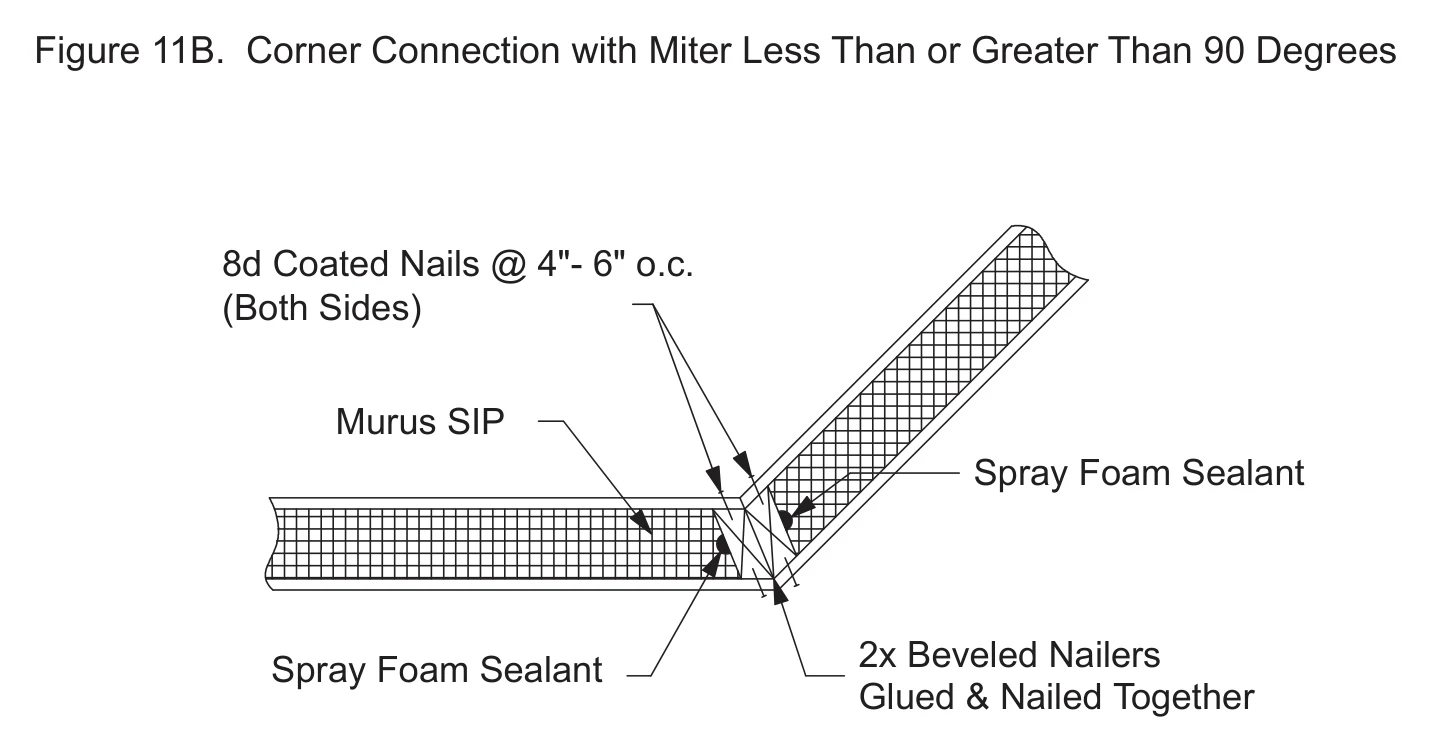

Corner Connection with Miter Less Than or Greater Than 90 Degrees construction detail drawing with callouts
Corner Connection with Miter Less Than or Greater Than 90 Degrees11B · N.T.S.
Detail
11B
Name
Corner Connection with Miter Less Than or Greater Than 90 Degrees
Group
Corners
Scale
N.T.S.
Source
The Murus Company, Inc.

Download PDF

Free, no signup. Confirm conditions against your engineer's requirements and local code.
