Gable Roof Connection with 2x Overhang

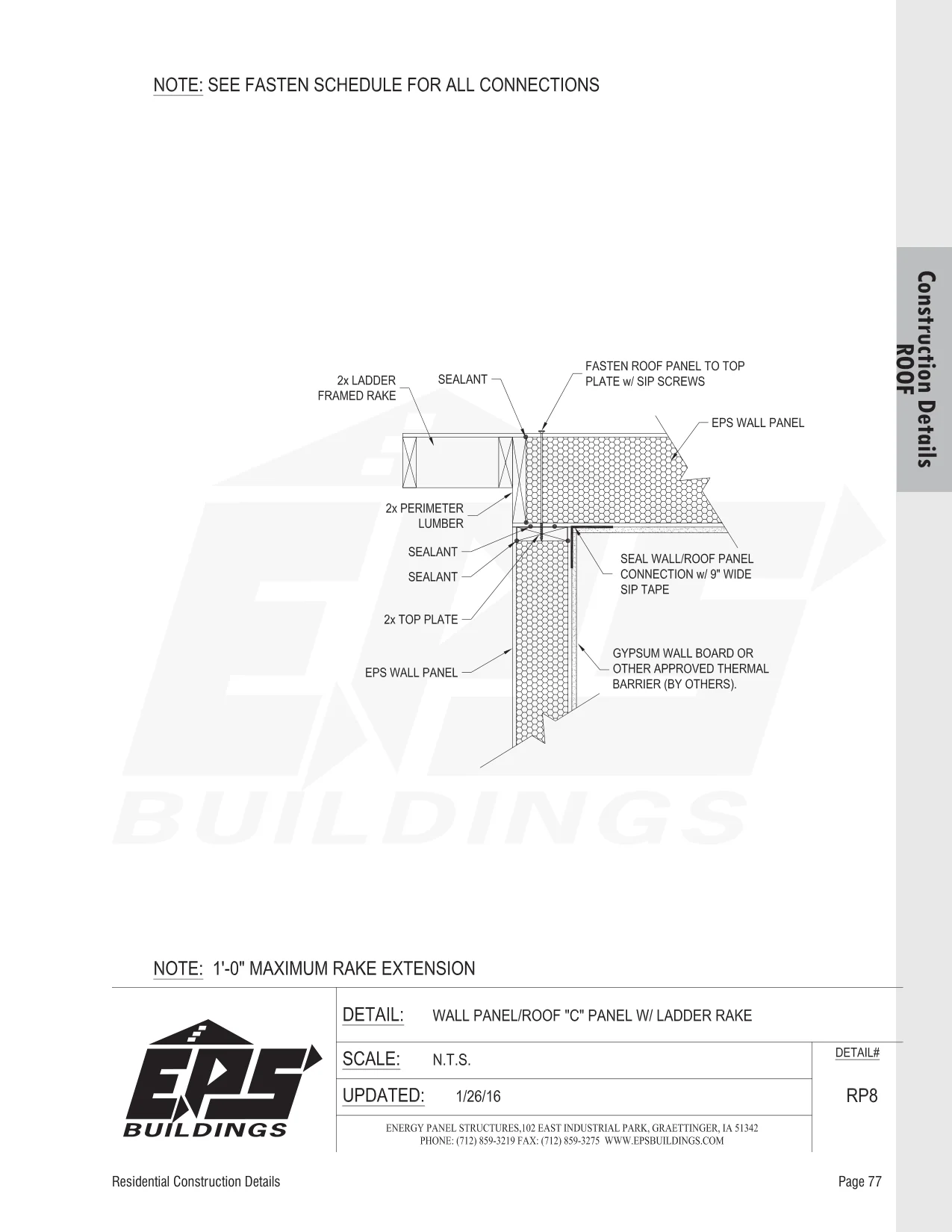

Wall Panel / Roof "C" Panel w/ Ladder Rake — the manufacturer's designation for this condition. Drawing is not to scale; download the PDF for the full sheet.

Wall Panel / Roof "C" Panel w/ Ladder RakeRP8 · N.T.S.

Detail: RP8
Name: Wall Panel / Roof "C" Panel w/ Ladder Rake
Group: Rakes & Overhangs
Scale: N.T.S.
Source: Energy Panel Structures, Inc.

Download PDF

Free, no signup. Confirm conditions against your engineer's requirements and local code.
