Gable Overhang Roof Detail

Wall Panel / Roof Panel Rake Ext. — the manufacturer's designation for this condition. Drawing is not to scale; download the PDF for the full sheet.

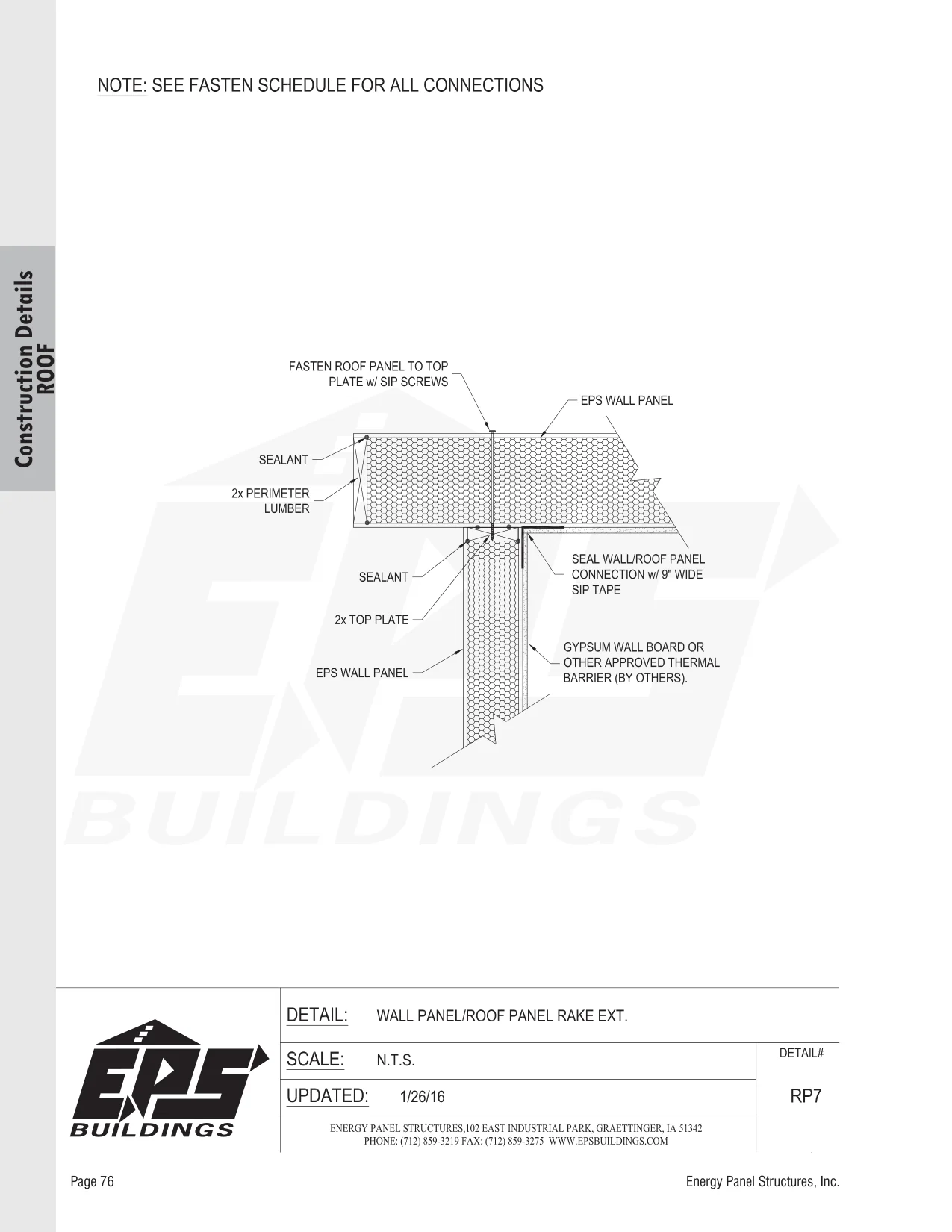

Wall Panel / Roof Panel Rake Ext. construction detail drawing with callouts

Wall Panel / Roof Panel Rake Ext.RP7 · N.T.S.

Detail: RP7
Name: Wall Panel / Roof Panel Rake Ext.
Group: Rakes & Overhangs
Scale: N.T.S.
Source: Energy Panel Structures, Inc.

Download PDF

Free, no signup. Confirm conditions against your engineer's requirements and local code.
