Murus detail 20B

Rough Opening Detail with Support Header

Rough Opening Detail with Support Header — the manufacturer's designation for this condition. Drawing is not to scale; download the PDF for the full sheet.

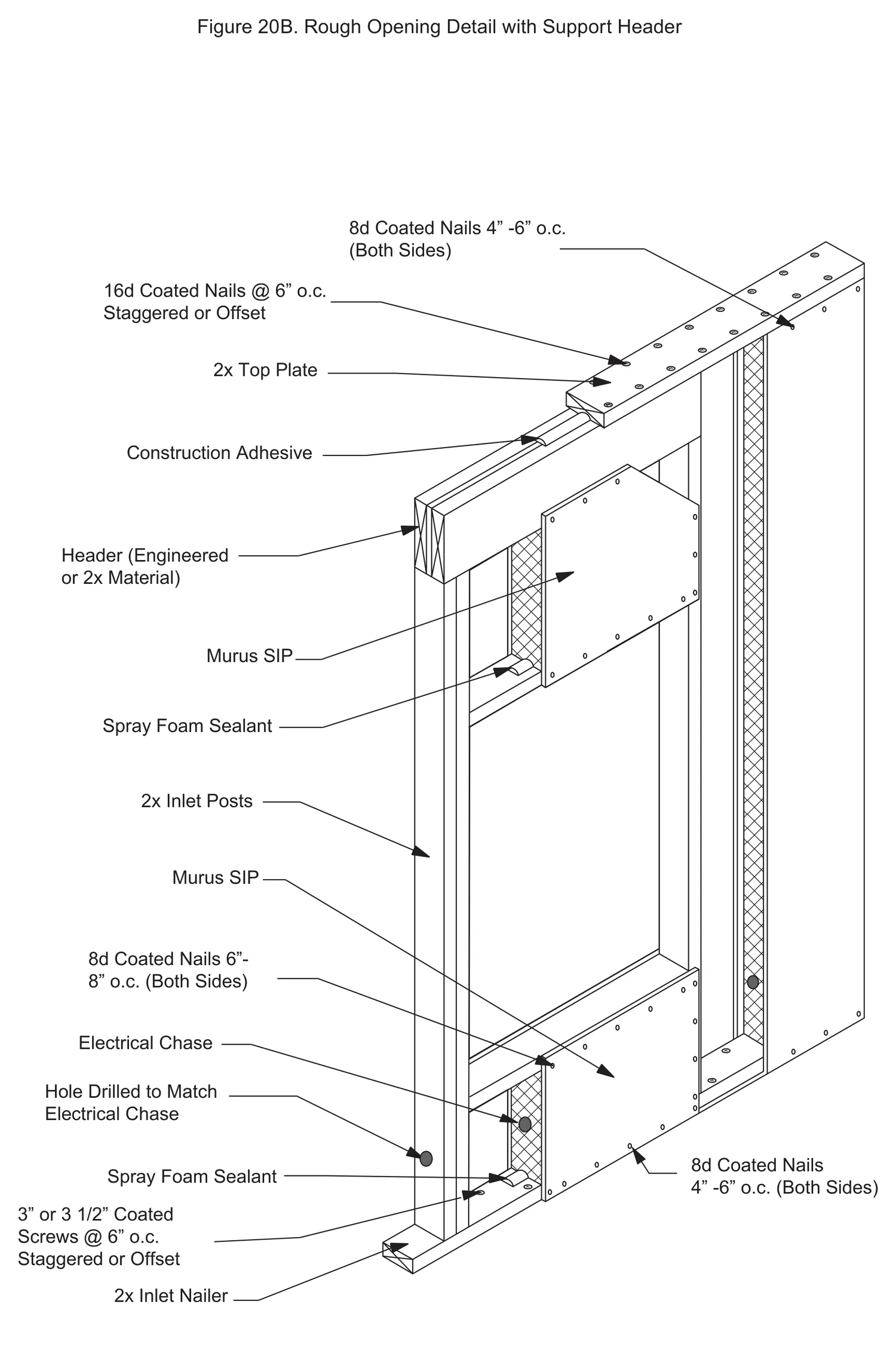

Rough Opening Detail with Support Header construction detail drawing with callouts
Rough Opening Detail with Support Header20B · N.T.S.
Detail
20B
Name
Rough Opening Detail with Support Header
Group
Openings
Scale
N.T.S.
Source
The Murus Company, Inc.

Download PDF

Free, no signup. Confirm conditions against your engineer's requirements and local code.
