EPS detail CD3

Foundation Corner Detail

Foundation Corner Detail — the manufacturer's designation for this condition. Drawing is not to scale; download the PDF for the full sheet.

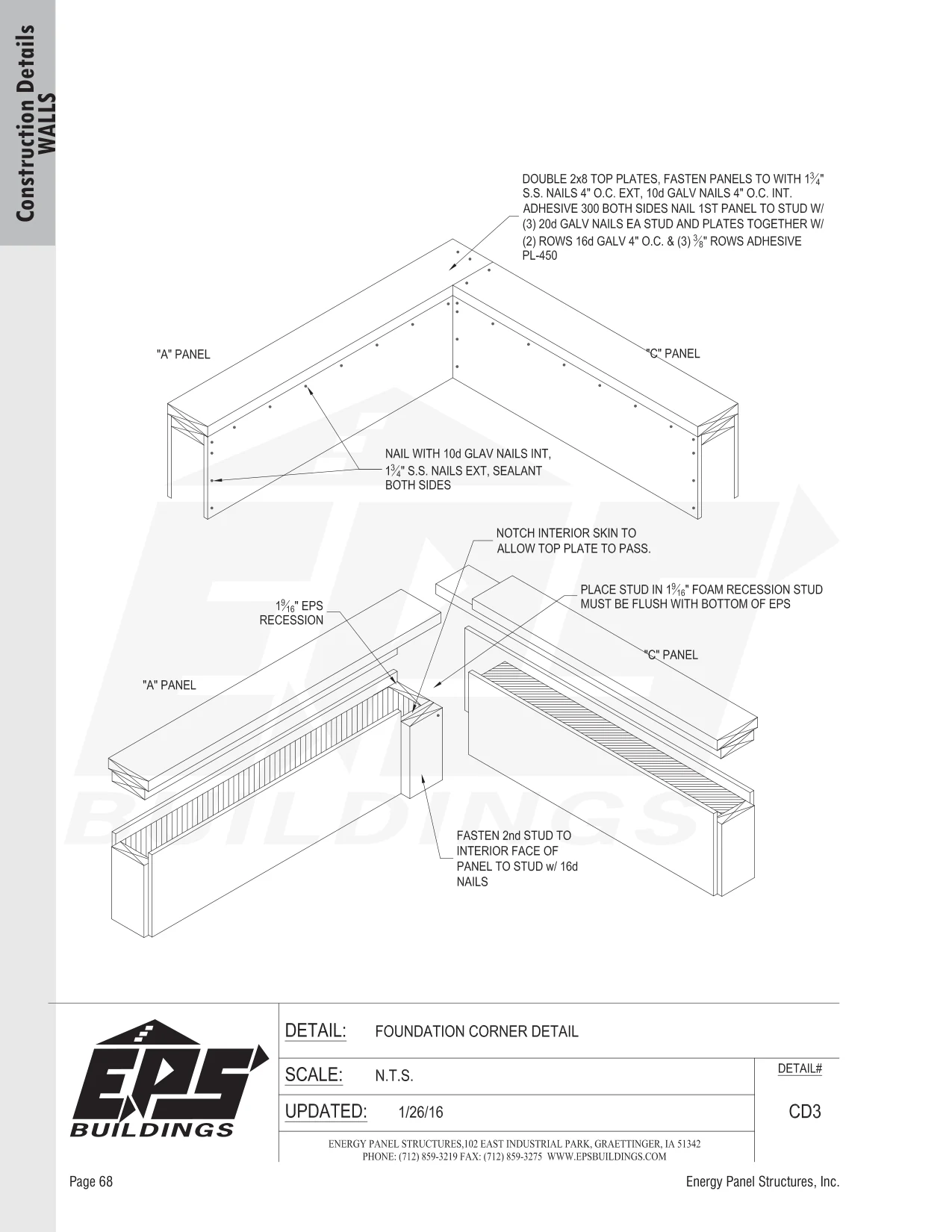

Foundation Corner Detail construction detail drawing with callouts
Foundation Corner DetailCD3 · N.T.S.
Detail
CD3
Name
Foundation Corner Detail
Group
Corners
Scale
N.T.S.
Source
Energy Panel Structures, Inc.

Download PDF

Free, no signup. Confirm conditions against your engineer's requirements and local code.
