EPS detail SP4

Double 2x Spline

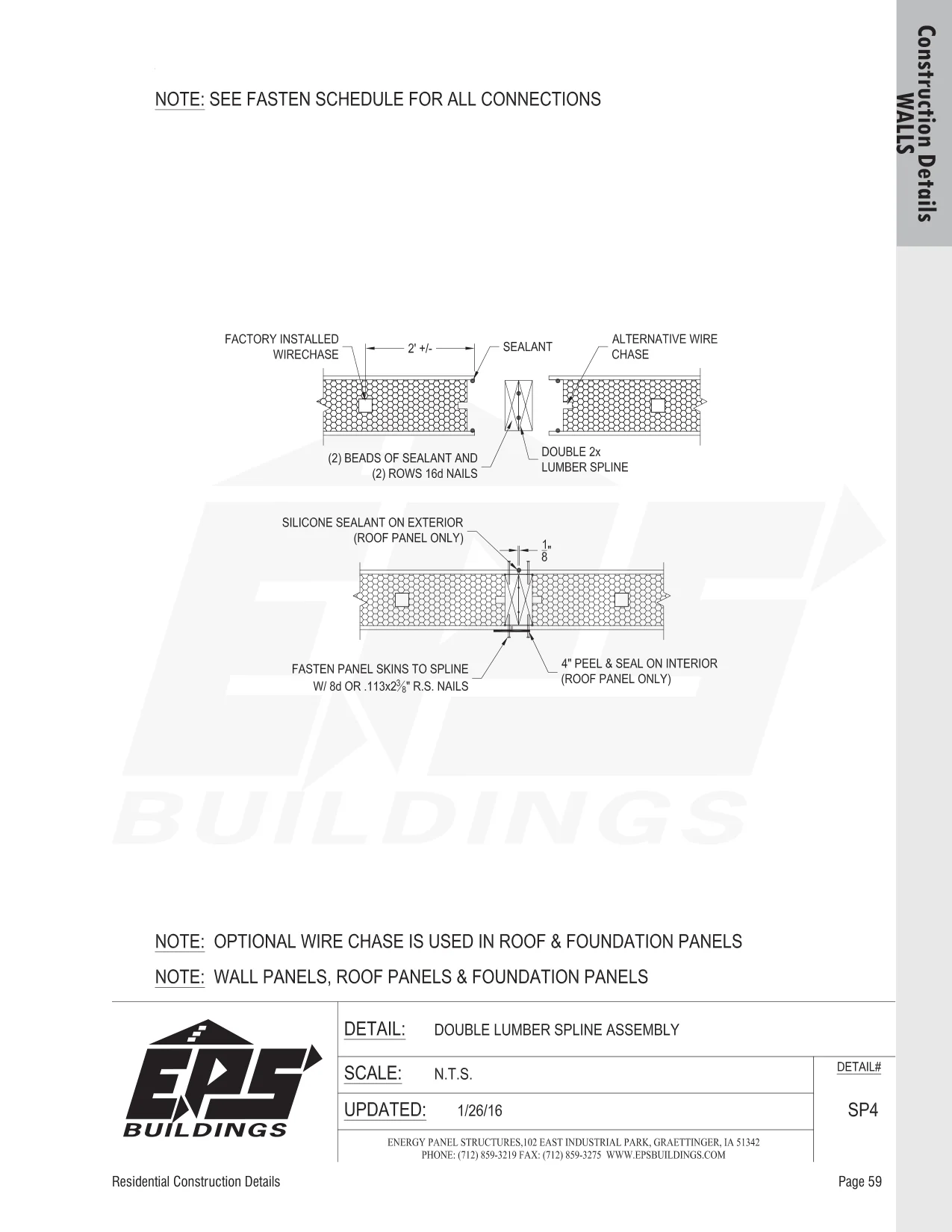

Double Lumber Spline Assembly — the manufacturer's designation for this condition. Drawing is not to scale; download the PDF for the full sheet.

Double Lumber Spline Assembly construction detail drawing with callouts
Double Lumber Spline AssemblySP4 · N.T.S.
Detail
SP4
Name
Double Lumber Spline Assembly
Group
Splines
Scale
N.T.S.
Source
Energy Panel Structures, Inc.

Download PDF

Free, no signup. Confirm conditions against your engineer's requirements and local code.

Splines

Block Spline DetailSP12x Surface Spline DetailSP3I-Spline DetailSP7Surface Spline AssemblySP2Triple Lumber Spline AssemblySP5All 56 EPS details→
